Esploso ricambi per Affettatrici Fimar H350 - H370

Fimar Fimar

Ricambi originali per Affettatrici Fimar H350 - H370


Nuovo

Disponibilità scarsa. Contattaci.

Il prodotto potrebbe presentare differenze estetiche dall'immagine pubblicata.


Confronta

Spese di spedizione

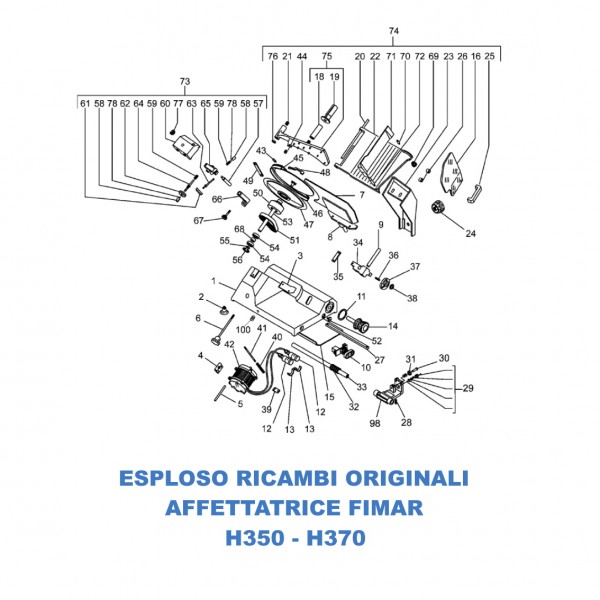

Esploso ed Elenco ricambi per Affettatrici Fimar H350 - H370Esploso ricambi affettatrice <a class=fimar H350 - H370" width="100%" height="NaN" />

Elenco dei Ricambi

Cliccando sul Tasto "Acquista" verrai reindirizzato alla scheda del ricambio dove potrà effettuare l'acquisto.

N Nome Descrizione Codice Link
1 Base - Base (H350) CO4072 Acquista
1 Base - Base (H370) CO6510 Acquista
2 Piedino - Foot CO4005 Acquista
3 Protezione - Protection (H350) CO4073 Acquista
3 Protezione - Protection (H370) CO6211 Acquista
6 Tirante - Tie rod CO4074 Acquista
7 Vela - Sail (H350) CO4075 Acquista
7 Vela - Sail (H370) CO4495 Acquista
8 Supporto - Support vela CO4076 Acquista
9 Perno - Pivot CO4077 Acquista
10 Pulsante con scheda - Push button with card 230V/1Ph/50-60Hz CO3923 Acquista
10 Pulsante con scheda - Push button with card 400V/3Ph/50-60Hz CO3924 Acquista
11 Anello - Ring manopola CO4130 Acquista
12 Condensatore - Condenser 6,3µF CO5041 Acquista
13 Staffa - Bracket CO3943 Acquista
14 Pomello - Knob CO4046 Acquista
15 Fondo - Bottom CO4078 Acquista
16 Protezione - Protection CO4079 Acquista
17 Pressamerce - Ram CO0453 Acquista
18 Distanziale - Spacer CO3948 Acquista
19 Maniglia - Handle CO4016 Acquista
20 Asta - Rod CO4081 Acquista
21 Molla - Spring CO4082 Acquista
22 Piatto - Flat CO4083 Acquista
23 Supporto - Support CO4084 Acquista
24 Pomello - Knob CO4053 Acquista
25 Maniglia - Handle CO3959 Acquista
26 Distanziale - Spacer CO4039 Acquista
27 Barra - Bar CO4085 Acquista
28 Grano - Grub screw M8 CO3962 Acquista
29 Kit blocco-vela - Kit fence plate safety lock CO8708 Acquista
30 Perno - Pivot CO3964 Acquista
31 Cuscinetto - Bearing 626 ZZ CO4680 Acquista
32 Molla - Spring CO4056 Acquista
33 Albero - Shaft CO4086 Acquista
34 Supporto - Support CO4087 Acquista
35 Piastra - Plate CO4088 Acquista
36 Perno - Pivot CO3971 Acquista
37 Camma - Cam CO4061 Acquista
38 Rosetta - Washer CO4062 Acquista
39 Piastra - Plate CO3973 Acquista
40 Molla - Spring CO3974 Acquista
41 Tirante - Tie rod CO3975 Acquista
42 Motore - Motor 01/01/02 f.p.(*) CO4063 Acquista
42 Motore - Motor 01/01/02 f.p.(*) CO4064 Acquista
42 Motore - Motor 400V/3Ph/50Hz CO4144 Acquista
42 Motore - Motor 230V/1Ph/50Hz CO4145 Acquista
43 Perno - Pivot CO3978 Acquista
44 Ruota - Wheel CO4089 Acquista
45 Coprilama - Blade cover (H350) CO4090 Acquista
45 Coprilama - Blade cover (H370) CO4496 Acquista
46 Anello - Ring (H350) CO4091 Acquista
46 Anello - Ring (H370) CO4497 Acquista
47 Lama - Blade (H350) CO2763 Acquista
47 Lama - Blade (H370) CO2764 Acquista
48 Protezione - Protection (H350) CO4093 Acquista
48 Protezione - Protection (H370) CO4557 Acquista
49 Piastra - Plate (H350) CO4094 Acquista
49 Piastra - Plate (H370) CO4558 Acquista
50 Puleggia - Pulley CO3085 Acquista
51 Cinghia - Belt TB2.34 360x12 CO3193 Acquista
53 Perno - Pivot CO4854 Acquista
54 Cuscinetto - Bearing 6004 2RS SL1799 Acquista
55 Seeger - Seeger ø20 SL0075 Acquista
56 Seeger - Seeger ø42 SL2056 Acquista
57 Perno - Pivot CO3995 Acquista
58 Pulsante mola - Wheel pusher CO3996 Acquista
59 Molla - Spring CO3997 Acquista
60 Copertura - Covering CO3998 Acquista
61 Mola affilatura - Gringind wheel CO3901 Acquista
62 Mola sbavatura - Deburring wheel CO3900 Acquista
63 Perno - Pivot CO3999 Acquista
64 Perno - Pivot CO4000 Acquista
65 Supporto - Support CO4001 Acquista
66 Supporto - Support CO4002 Acquista
67 Pomello - Knob CO4003 Acquista
68 Distanziale - Spacer CO0444 Acquista
69 Pomello - Knob CO4095 Acquista
70 Perno - Pivot CO4096 Acquista
71 Battuta - Stop CO4097 Acquista
72 Perno - Pivot CO4098 Acquista
73 Affilatoio - Tool grinder Assembly CO3926 Acquista
74 Piatto - Flat Assembly CO4129 Acquista
75 Pressamerce - Ram Assembly CO4080 Acquista
76 Guarnizione - Gasket CO2853 Acquista
77 Pomello - Knob CO4132 Acquista
78 Sfera - Sphere CO5571 Acquista
80 Mola affilatura - Gringind wheel CO3444 Acquista
81 Mola sbavatura - Deburring wheel CO3443 Acquista
83 Copertura - Covering CO0445 Acquista
86 Affilatoio - Tool grinder Assembly CO0447 Acquista
87 Pomello - Knob CO0451 Acquista
88 Coprilama - Blade cover (H350) CO4090 Acquista
88 Coprilama - Blade cover (H370) CO4496 Acquista
89 Lampada - Lamp 32W3280 Acquista
90 Interruttore - Switch 230V/1Ph/50-60Hz CO2817 Acquista
90 Interruttore - Switch 400V/3Ph/50-60Hz CO2818 Acquista
91 Vela - Sail (H350) CO0455 Acquista
91 Vela - Sail (H370) CO0456 Acquista
92 Motore - Motor 230V/1Ph/50Hz CO4063 Acquista
92 Motore - Motor 400V/3Ph/50Hz CO4064 Acquista
98 Supporto - Support CO5046 Acquista
99 Supporto - Support CO4055 Acquista
100 Pressacavo - Cable clamp CO7181 Acquista
101 Mandrino - Spindle Assembly CO8412 Acquista
