Esploso per ricambi per tritacarne Fimar 12S - 12B

Fimar Fimar

Ricambi per tritacarne Fimar 12S - B


Nuovo

Disponibilità scarsa. Contattaci.

Il prodotto potrebbe presentare differenze estetiche dall'immagine pubblicata.


Confronta

PREZZO OFFERTA DA
€ 0,00 -15% SCONTO

€ 0,00
(€ 0,00 IVA Incl.)

Spese di spedizione

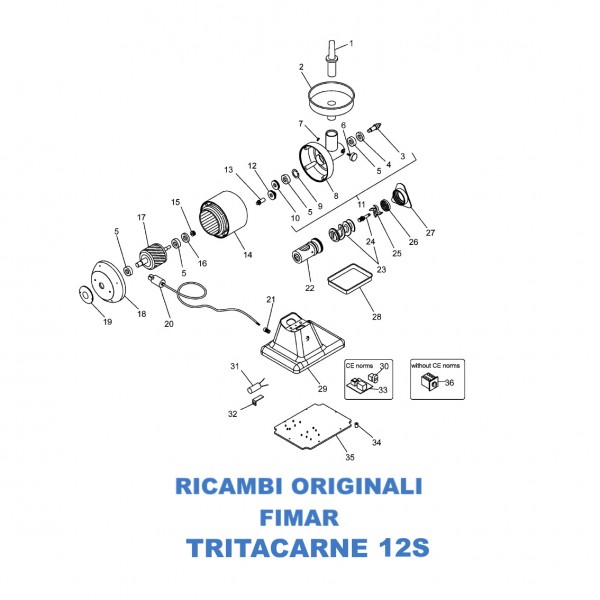

Ricambi per tritacarne Fimar 12S - 12BEsploso <a class=tritacarne fimar 12S" width="100%" height="NaN" />

Elenco dei Ricambi

Cliccando sul Tasto "Acquista" verrai reindirizzato alla scheda del ricambio dove potrà effettuare l'acquisto.

N Nome Descrizione codice Link
1 Pestello - Pusher SL4069 Acquista
2 Tramoggia - Hopper SL0136 Acquista
3 Albero - Shaft SL0140 Acquista
4 Paraolio - Oil seal ø25xø40x7 SL0139 Acquista
5 Cuscinetto - Bearing 6203 2RS SL0131 Acquista
6 Pomello - Knob SL0138 Acquista
7 Tappo - Cap SL2917 Acquista
8 Bocchettone - Sleeve SL3980 Acquista
9 Seeger - Seeger ø40 SL0132 Acquista
10 Ingranaggio - Gear SL0130 Acquista
11 Bocchettone - Sleeve Assembly SA3710 Acquista
12 Ingranaggio - Gear SL0125 Acquista
13 Albero - Shaft SL0124 Acquista
14 Statore - Stator 400V/3Ph/50Hz SA1014 Acquista
14 Statore - Stator 230V/1Ph/50Hz SA1015 Acquista
15 Ingranaggio - Gear SL0128 Acquista
16 Paraolio - Oil seal ø17xø40x7 SL0127 Acquista
17 Rotore - Rotor 400V/3Ph/50Hz SA7300 Acquista
17 Rotore - Rotor 230V/1Ph/50Hz SA7400 Acquista
18 Calotta - Calotte SL0186 Acquista
19 Coperchio - Cover SL2833 Acquista
20 Cavo elettrico - Electric cable 1Ph+N+Gnd SL1671 Acquista
20 Cavo elettrico - Electric cable 3Ph+Gnd SL1841 Acquista
21 Pressacavo - Cable clamp PG11 SL1668 Acquista
22 Bocchettone - Sleeve Stainless-steel SL0142 Acquista
22 Bocchettone - Sleeve Food stuff treated steel SL3078 Acquista
23 Elica - Screw shaft Stainless-steel SA5300 Acquista
23 Elica - Screw shaft Food stuff treated cast-iron SA5350 Acquista
24 Perno - Pivot SL2521 Acquista
25 Coltello - Cutter Acquista
26 Coltello - Cutter
27 Volantino - Handwheel Stainless-steel SL0171 Acquista
27 Volantino - Handwheel Aluminium SL3327R0 Acquista
28 Recipiente - Container SL0180 Acquista
29 Base - Base TR12SQ0 SL2566 Acquista
29 Base - Base TR12B SL3244 Acquista
30 Pulsante - Push button TR12SQ0 Start-stop SL0891 Acquista
30 Pulsante - Push button TR12B Start-stop + relay 250v SL2919 Acquista
31 Condensatore - Condenser 16µF SL0177 Acquista
32 Staffa - Bracket SL0176 Acquista
33 Scheda elettronica - Electronic card 110V fino al 26/10/2014 SA1135 Acquista
33 Scheda elettronica - Electronic card 230/400V SL0883 Acquista
33 Scheda elettronica - Electronic card 110V dal 27/10/2014 SL0902 Acquista
34 Piedino - Foot SL0235 Acquista
35 Fondo - Bottom SL2651 Acquista
36 Interruttore - Switch SL0054 Acquista
