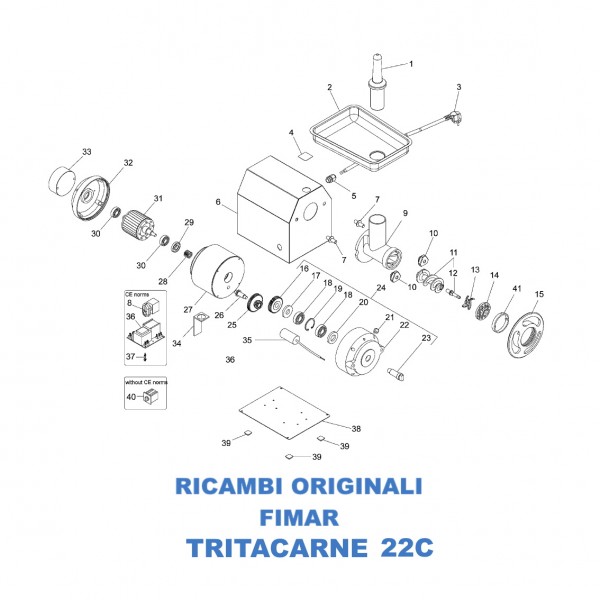

Esploso per ricambi per tritacarne Fimar 22C

Fimar Fimar

Ricambi per tritacarne Fimar 22C


Nuovo

Disponibilità scarsa. Contattaci.

Il prodotto potrebbe presentare differenze estetiche dall'immagine pubblicata.


Confronta

Spese di spedizione

Ricambi per tritacarne Fimar 22CEsploso <a class=tritacarne fimar 22C" width="100%" height="NaN" />

Elenco dei Ricambi

Cliccando sul Tasto "Acquista" verrai reindirizzato alla scheda del ricambio dove potrà effettuare l'acquisto.

N Nome Descrizione Codice Link
1 Pestello - Pusher SL4069 Acquista
2 Tramoggia - Hopper SL0135 Acquista
3 Cavo elettrico - Electric cable 1Ph+N+Gnd SL1671 Acquista
3 Cavo elettrico - Electric cable 3Ph+Gnd SL1841 Acquista
4 Etichetta - Label SL3104 Richiedi info
5 Pressacavo - Cable clamp PG11 SL1668 Acquista
6 Carcassa - Housing SL3041 Acquista
7 Perno - Pivot SL3102 Acquista
8 Pulsante - Push button Start-stop SL0891 Acquista
9 Bocchettone - Sleeve ø56 Cast-iron NO CE 07/11/13 f.p.(*) SL2523R0 Richiedi info
9 Bocchettone - Sleeve ø56 Unger NO CE 07/11/13 f.p.(*) SL2544 Acquista
9 Bocchettone - Sleeve ø52 Stainless-steel CE SL3986 Acquista
9 Bocchettone - Sleeve ø52 Unger NO CE 08/11/13 SL3987 Acquista
9 Bocchettone - Sleeve ø52 Aluminium CE SL3997 Acquista
9 Bocchettone - Sleeve ø52 Aluminium NO CE 08/11/13 SL4150 Acquista
9 Bocchettone - Sleeve ø52 Stainless-steel NO CE SL4151 Acquista
9 Bocchettone - Sleeve ø52 Unger CE dal 12/18 SL4354 Acquista
9 Bocchettone - Sleeve ø52 Unger CE fino al 11/18 SL4354+SL4351 Richiedi info
10 Pomello - Knob SL2924 Acquista
11 Elica - Screw shaft Food stuff treated cast-iron NO CE SA5400 Acquista
11 Elica - Screw shaft Stainless-steel SA5500 Acquista
11 Elica - Screw shaft Unger SA5700 Acquista
12 Perno - Pivot SL0823 Acquista
12 Perno - Pivot Unger SL0824 Acquista
13 Coltello - Cutter Acquista
14 Coltello - Cutter
15 Volantino - Handwheel Stainless-steel SL0197 Acquista
15 Volantino - Handwheel Aluminium NO CE norms SL3328R0 Acquista
16 Ingranaggio - Gear SL0130 Acquista
17 Paraolio - Oil seal ø20xø47x8 SL2593 Acquista
18 Cuscinetto - Bearing 6204 2RS SL3125 Acquista
19 Seeger - Seeger ø47 SL0082 Acquista
20 Paraolio - Oil seal ø25xø47x8 SL2591 Acquista
21 Tappo - Cap SL2709 Richiedi info
22 Calotta - Calotte SL3112 Acquista
23 Albero - Shaft SL2528 Acquista
24 Calotta - Calotte Assembly SA1320 Acquista
25 Ingranaggio - Gear SL0125 Acquista
26 Albero - Shaft SL2589 Acquista
27 Statore - Stator 400V/3Ph/50Hz SA1016 Acquista
27 Statore - Stator 230V/1Ph/50Hz SA1017 Acquista
28 Ingranaggio - Gear SL0128 Acquista
29 Paraolio - Oil seal ø17xø40x8 SL0127 Acquista
30 Cuscinetto - Bearing 6203 2RS SL0131 Acquista
31 Rotore - Rotor 400V/3Ph/50Hz SL2600 Acquista
31 Rotore - Rotor 230V/1Ph/50Hz SL2601 Acquista
32 Calotta - Calotte SL0186 Acquista
33 Distanziale - Spacer SL3082 Acquista
34 Staffa - Bracket SL0176 Acquista
35 Condensatore - Condenser 20µF SL0931 Acquista
36 Scheda elettronica - Electronic card 110V fino al 26/10/2014 SA1135 Acquista
36 Scheda elettronica - Electronic card 230/400V SL0883 Acquista
36 Scheda elettronica - Electronic card 110V dal 27/10/2014 SL0902 Acquista
37 Distanziale - Spacer SL3020 Acquista
38 Fondo - Bottom SL3049 Acquista
39 Piedino - Foot 3178340 Richiedi info
40 Interruttore - Switch SL0054 Acquista
41 Riduzione - Reduction Unger CE SL4351 Acquista
