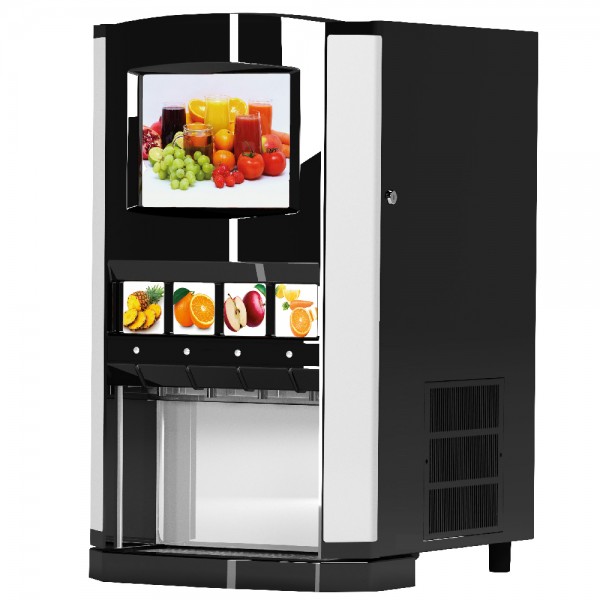

Dispenser of cold beverages made from juice concentrate. 4JUICES

Dispensing of cold drinks made from concentrated juice.

Dispenses up to 4 different cold drinks obtained by mixture of concentrated base (syrup) with water. It is equipped with 4 containers for 4-liter concentrated juice. The loading of water into the tank is automatic after each dispensing and the cooling and maintenance of juice temperature is guaranteed even for continuous cycle dispensing. The juice/water dilution ratio is adjustable. The machine has high performance, guaranteed by a pressure-tight insulated tank cooling system.

The 4JUICES has 2 dispensing modes:
- preset dose: glass or jug (height up to 25.5 cm)
- continuous duty push control

• Mixers: 4
• Flavors: 4
• Soluble container capacity: 4 liters
• Water container capacity: 6 liters
• Dilution ratio:adjustable up to 1:12
• Selections: Tumbler-Carafe/Push control
• Water filling: Automatic
• Color: Black
• Size: base 475 mm
• Size: depth 598 mm
• Size: height 828 mm
• Net weight: 50 kg
• Refrigerant gas: R134a
• Standard Voltage: 230/50 V/Hz
• Power consumption: 320 Watts

Equipment is supplied with hose for water supply connection with ¾ inch (female) connection.
