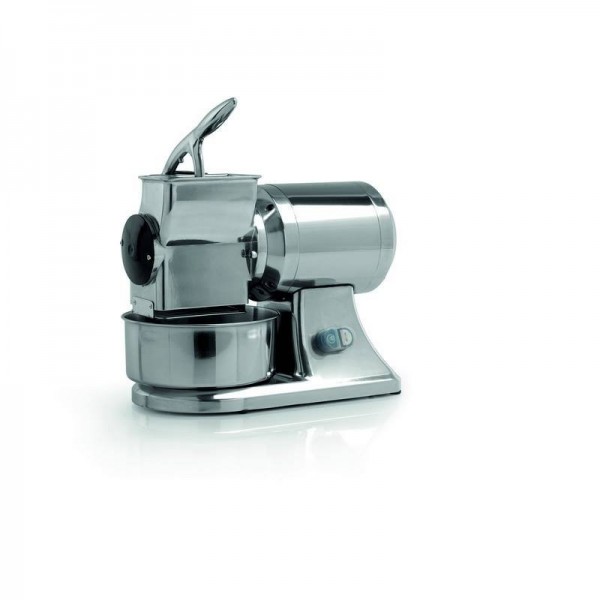

Professional three-phase grater Fama FGSM106 GSM series

Professional grater model GSM

Steel roller, three-phase power supply, oversized motor

A professional grater with a die-cast aluminum frame, this grater is specially designed for grated cheese production, all with the best possible performance.

The GSM model has a fully die-cast aluminum frame to ensure maximum lightness and durability.

The cheese inlet mouth has a size of 140x80 mm.

The powerful 230-Volt, 50-Hz three-phase motor has a power rating of 1.1 kWatt and is equipped with thermal protection to ensure durability.

È also present a protection grid, motor brake, and a microswitch lever presser in the grater that provides additional protection during processing, the safety device will stop the rotary movement in compliance with current European regulations when the grater lever is in the raised position.

24-volt controls.

The hourly output of this grater is 40 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-Spare steel rollers

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Technical features:

• -GSM model.
• -Unique code FGSM106
• -Made in Italy
• -Brand Fama Industrie
• -Single-phase power supply 230 volts 50 Hz
• -Power 1.1 kW (1.5 HP)
• -Production per hour 90 kg/h
• -Revolutions per minute of the grater 900 Revs/m
• -Die-cast aluminum structure.
• -Stainless steel collection bowl
• -Stainless steel discharge protection grid.
• -Aluminum inlet port
• -Mouth dimensions 140x80
• -Total dimensions 220x420x380h mm
• -Net weight 20 kg
• -Gross Weight 22 kg
• -Packaging dimensions 300x470x520h mm

MADE IN ITALY

Machinery manufactured and produced in Italy by Fama industrie, a family-owned company with over 65 years of history and experience in designing and marketing professional catering equipment. It boasts Quality and reliability throughout Italy and the world where it sells and collaborates with professionals in all sectors of the catering industry. The production and design facility is located in Rimini where a team of professionals daily designs and manufactures precision machinery for bars, restaurants, canteens, professional kitchens, hotels and hotels.
