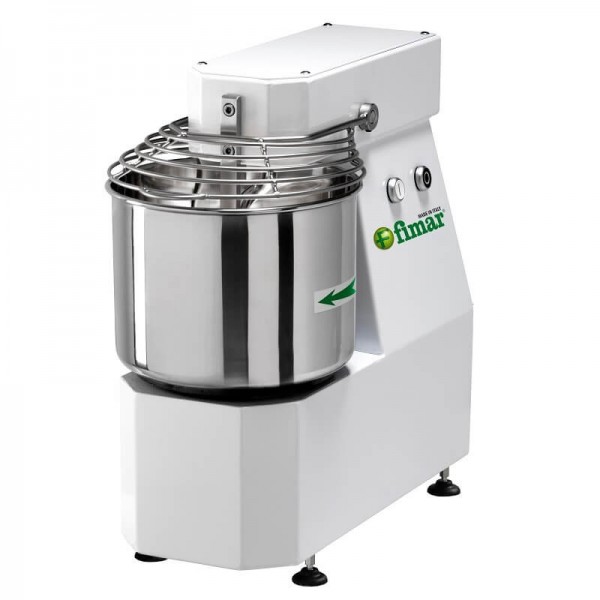

Spiral Kneader 7 Kg Fimar 7SN Single Phase

7 Kg professional spiral mixer

Single-phase power supply 230 volts - Power 0.37 kW - Fixed head and bowl.

Professional spiral kneading machine for processing different types of dough, especially suitable for soft doughs such as bread, pizza and piada. this mixer is equipped with a fixed head and bowl, a very important feature to ensure stability while processing the product.

The outer structure is made of metal coated with a special industrial scratch-resistant paint that makes it durable and easy to clean, all parts in contact with food, bowl, spiral and dough splitting rod, are made of AISI 304 Stainless Steel.

The bowl has a total capacity of 10 Liters, the diameter of Ø26 cm and theheight of 20 cm allow processing up to 7 kg of dough,at least 1/3 of the maximum dough capacity in Kg, or 2Kg of product, is required to allow processing.

A safety micro switch is located on the bowl lid to stop the rotary motion when the lid is open in compliance with current European CE regulations.

The 7SN spiral kneading machine is made in Italy by the Italian company Fimar with more than 40 years of experience in the catering equipment industry.The machine has asingle-phase 230-volt 50-hz power supply and a power rating of 0.37 kw for the one-speed version. The basic machine has a single impeller speed of 90 rpm.

The manufacturer's stated hourly output is 36 kg/h.

The standard machine does not have a Timer upon request a mechanical timer can be added which will be installed before the machine is shipped. It is not possible to install a digital timer.

The wheels kit is an option that can be purchased on request, the basic machine is supplied with rubber feet, if by necessity the machine during operations must be moved a kit of wheels with brakes can be ordered to be able to move the machine easily in workplaces, it is also available as an alternative to purchase a special low trolley where to place the mixer on top.

The machine comes standard with a wire grating lid made of AISI 304 stainless steel that makes it easy to add ingredients and control processing.

The basic motor is not equipped with motor saver you can request it at the time of purchase , this safety device is available only for single speed mixers ( not with 2 speeds ) and is necessary in case of impeller or bowl blockage or in any case in which the machine motor falls into an overload condition that can damage the internal components, in these cases the motor saver perceives the anomaly and interrupts the power supply thus avoiding internal damage.

CAUTION: Any addition of features or options on request other than the basic model may lengthen the procedures for making and sending the machine.

ACCESSORIES ACQSUITABLE SEPARATELY:

-Low cart with wheels

-Spare parts for kneading machine

ALL ACCESSORIES AND SPARE PARTS CAN BE FOUND IN THE "ACCESSORIES" SECTION OF THIS PRODUCT SHEET.

TECHNICAL FEATURES:

• -Model: 7 FN
• -Manufacturer: Fimar s.p.a.
• -Made in Italy
• -Tank capacity: 7 kg - 10 Liters
• -Minimum dough for processing: 4kg
• -Tank dimensions: Ø 260 x 200 mm
• -Single-phase power supply 230 volts 50 Hz
• -Power 0.37 kW ( 0.5 hp )

• -Hourly output 21 kg/h
• -Impeller speed 90 rpm

• -Fixed bowl
• -Fixed head
• -Painted metal structure
• -Stainless steel bowl
• -Stainless steel dough splitting rod.
• -Micro safety device on lid
• -Net weight: 39 kg
• -Gross Weight: 50 kg
• -Closed machine dimensions 560x280x570h mm
• -Circumference to be added with timer: 120 mm in height
• -Packaging dimensions 700x460x770h mm

MADE IN ITALY

Equipment produced and built in Italy by the company Fimar S.p.a. which has more than 30 years of experience in the design and production of specific machinery for professional catering designed specifically for restaurants, butcher shops, bars, canteens, supermarkets and professional catering activities. A Team of professionals selects the best suppliers and raw materials every day to ensure the highest quality finished product guaranteeing reliability and safety, the machines produced by the Fimar brand are shipped and used daily all over the world by catering professionals.
