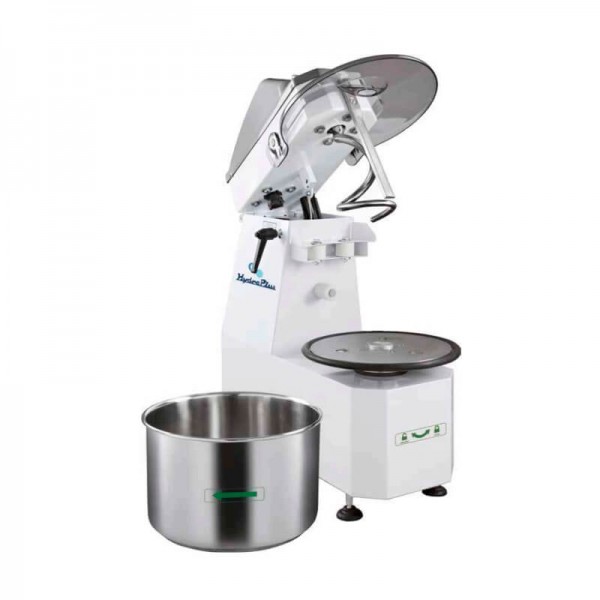

Spiral Kneader 38 kg Fimar 38CNS Single Phase

Professional 38 kg spiral mixer with lifting head and removable bowl

Single-phase power supply 230 volts - Power 1.5 kW

Professional spiral kneading machine for processing different types of doughs, particularly suitable for soft doughs such as bread, pizza and piada. this mixer is equipped with Lifting head and removable bowl, two very important features to facilitate the procedures of dough unloading and cleaning of bowl and impeller. The external structure is made of metal coated with a special industrial anti-scratch paint that makes it durable and easy to clean, all parts in contact with food, Bowl, spiral and dough splitting rod, are made of AISI 304 Stainless Steel. The bowl has a total capacity of 42 Liters, the diameter of 45 cm and height of 26 cm allow processing up to 38 kg of dough. A safety micro switch is located on the lid of the bowl to stop the rotary motion when the lid is open in compliance with current European CE regulations.

The 38 CNS spiral kneading machine is made in Italy by the Italian company Fimar with more than 40 years of experience in the catering equipment sector, the machine has asingle-phase 230 Volts 50 hz power supply and a power of 1.5 kw. the machine has a single impeller speed of 90 rpm, the second speed is on request only for machines with three-phase power supply so the double speed can be requested only on the 380 Volts power supply version.

The hourly output stated by the manufacturer is 114 kg/h at the moment. the standard machine is not equipped with Timer on request it can be had with the addition of a mechanical or digital timer that will be installed before the machine is shipped.

Also the Wheels kit is a feature on request, the basic machine is supplied with rubber feet, if by necessity the machine during operations must be moved you can order a kit of wheels with brakes to be able to move the machine easily in the workplaces, it is also available as an alternative the possibility to buy a special low trolley where to place over the mixer.

The machine comes standard with a lid made of durable smoked polycarbonate on request you can choose to install a lid made of AISI 304 stainless steel grid wire that facilitates the addition of ingredients and control of processing.

The basic 1.5 kw ( 2 hp ) single-phase motor is not equipped with a motor saver you can request it during purchase, this safety device is available only for single-speed mixers ( not with 2 speeds ) and is necessary in case of impeller or bowl blockage or in any case in which the machine motor falls into an overload condition that could damage the internal components, in these cases the motor saver senses the anomaly and interrupts the power supply thus avoiding internal damage.

CAUTION: Any addition of features or options on request other than the basic model may lengthen the procedures for making and sending the machine.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-Low cart with wheels

-handles for pan extraction

ALL ACCESSORIES AND SPARE PARTS CAN BE FOUND IN THE "ACCESSORIES" SECTION OF THIS PRODUCT SHEET.

TECHNICAL FEATURES:

• -Model: 38 CNS
• -Manufacturer: Fimar s.p.a.
• -Made in italy
• -Tank capacity: 38 kg - 42 Liters
• -Tank dimensions: Ø 450 x 260 mm
• -Single-phase power supply 230 volts 50 Hz
• -Power 1.5 kW ( 2 hp )
• -Hourly output 114 kg/h
• -Impeller speed 90 rpm
• -Removable bowl
• -Liftable head
• -Painted metal structure
• -Stainless steel bowl
• -Stainless steel dough splitting rod
• -Stainless steel bowl
• -Micro safety device on lid
• -Net weight: 114 kg
• -Gross Weight: 127 kg
• -Machine dimensions closed 800x480x730h mm
• -Machine footprint open 800x480x1340h mm
• -Impact to add with timer: 120 mm in height
• -Packaging dimensions 850x550x890h mm

MADE IN ITALY

Equipment manufactured and built in Italy by the company Fimar S.p.a. which has more than 30 years of experience in the design and production of specific machinery for professional catering designed specifically for restaurants, butcher shops, bars, canteens, supermarkets and professional catering activities. A Team of professionals selects the best suppliers and raw materials every day to ensure the highest quality finished product guaranteeing reliability and safety, the machines produced by the Fimar brand are shipped and used daily all over the world by catering professionals.

View more products from the FIMAR SPA brand

VIDEO:

WARNING, sample video for operation in the video an old version of the machine is shown, please refer to the technical specifications in the sheet.
