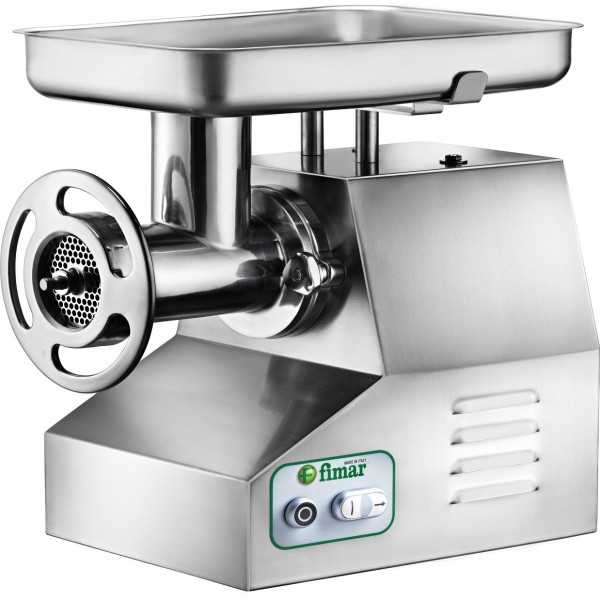

Professional Meat Mincer Fimar 32TN Three-Phase Inox

Enterprise 32TN professional meat grinder

Stainless steel grinding unit

A professional shrouded meat grinder made entirely of stainless steel, this meat grinder is specially designed for the processing and production of minced meat.

The model is equipped with an enterprise model grinding system consisting of a stainless steel plate with 6 mm diameter holes already provided and a knife, also made of stainless steel, which is self-sharpening.Other plates with different holes are available to be purchased separately with a maximum diameter of 8 mm hole and a minimum of 2 mm.

The grinding unit for this model is made of stainless steel and is completely removable, allowing complete removal of the T-element and enabling thorough cleaning, even in a water bath and dishwasher.

Thanks to its technical features, the 32TN meat grinder with stainless steel grinding unit can be placed in the refrigerator without having to be cleaned of ground meat residues at the end of use, in accordance with HACCP hygiene regulations .

This professional meat processing equipment is manufactured with a high-quality outer casing and a stainless steel product inlet hopper.

The meat inlet has a diameter of 76 mm.

The powerful 380-400 volts, 50 Hz, three-phase motor with a power rating of 2.2 kWatts is also equipped with a reversing gearbox, oil-immersed gears and a cooling fan to ensure maximum efficiency.

There are also low-voltage controls and a micro safety switch on the hopper that provides additional protection during processing; the safety device will stop the rotary motion in compliance with current European regulations.

The hourly output of this meat grinder is claimed to be between 300 and 500 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-Plates with different hole diameters from 2 mm to 8 mm bore.

-Drums for bagging with 15 or 20 mm diameter outlet

-Stainless steel replacement knife

-Spare parts for repairs

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model 32 TN
• -Made in Italy
• -Brand Fimar S.p.a.
• -Stainless steel grinding unit.
• -Three-phase power supply 230-400 volts 50 Hz.
• -Power 2.2 kW (3 HP)
• -Hourly output 300 - 500 kg/h
• -Structure made of stainless steel
• -Stainless steel hopper
• -Meat inlet Ø 76 mm
• -Stainless steel plate Ø 6 mm included.
• -Stainless Steel self-sharpening knife.
• -Total dimensions 520x320x550h mm
• -Net weight 43kg
• -Gross Weight 49kg
• -Packaging dimensions 570x420x680h mm

ENTERPRISE system consisting of a grinding chamber, auger, a perforated plate, a knife and a closing handwheel. Different plates are available with holes of different diameters up to a maximum of 8 mm (per European regulations). As standard, the meat grinder comes with a plate with 6 mm diameter holes.

MADE IN ITALY

Equipment manufactured and built in Italy by the company Fimar S.p.a., which has more than 30 years of experience in the design and production of specific machinery for professional catering designed specifically for restaurants, butcher shops, bars, canteens, supermarkets and professional catering activities. A Team of professionals selects the best suppliers and raw materials every day to ensure the highest quality finished product guaranteeing reliability and safety, the machines produced by the Fimar brand are shipped and used daily all over the world by catering professionals.
