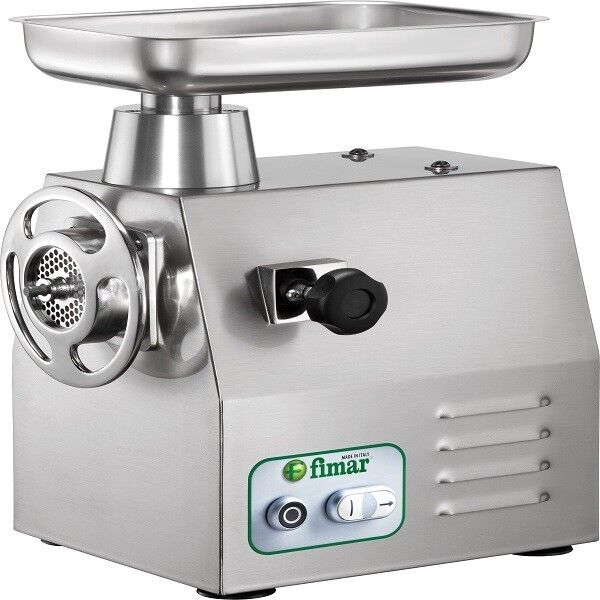

Professional meat grinder Fimar 22RS three-phase

Professional meat grinder model 22RS

Food grade cast iron grinding unit, three-phase power supply

A professional shrouded meat grinder made of stainless steel, this meat grinder is specially designed for the processing and production of minced meat.

Model 22RS is equipped with an enterprise model grinding system consisting of a stainless steel plate with 6 mm diameter holes already provided and a knife, also made of stainless steel, that is self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 8 mm and a minimum of 2 mm.

The grinding unit for this model is made of food -gradecast iron specially treated for food contact.

The cast iron grinding unit is partially removable and is not dishwasher or water bath safe.

This professional meat-processing equipment is manufactured with a high-quality stainless steel outer casing and a hopper for product insertion also made of stainless steel.

The meat inlet has a diameter Ø of 52 mm.

The powerful 380-400 volts, 50 Hz, three-phase motor with 1.1 kWatt output also features reverse, oil-bath gearbox to ensure maximum efficiency.

There are also low voltage controls that provide additional protection during processing, the safety device will stop the rotary motion in compliance with current European regulations.

The hourly output of this meat grinder is claimed to be between 150 and 250 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-Plates with different diameter holes from 2 mm to 8 mm bore.

-Sacking drums with 15 or 20 mm diameter outlet

-Stainless steel replacement knife

-Spare parts for repairs

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model 22RS
• -Made in Italy
• -Brand Fimar S.p.a.
• -Food grade cast iron grinding unit.
• -Three-phase 380-400 volt 50 Hz power supply.
• -Power 1.1 kW (1.5 HP)
• -Hourly output 150 - 250 kg/h
• -Stainless Steel Structure.
• -Stainless Steel Hopper
• -Meat inlet Ø 52 mm
• -Stainless Steel plate Ø 6 mm included.
• -Stainless Steel Self-Sharpening Knife.
• -Total dimensions 410x310x520h mm
• -Net weight 32 kg
• -Gross Weight 38 kg
• -Packaging dimensions 570x420xh680 mm

ENTERPRISE system consisting of a grinding chamber, auger, a perforated plate, a knife and a closing handwheel. Different plates are available with holes of different diameters up to a maximum of 8 mm (per European regulations). As standard, the meat grinder comes with a plate with 6 mm diameter holes.

MADE IN ITALY

Equipment manufactured and built in Italy by the company Fimar S.p.a., which has more than 30 years of experience in the design and production of specific machinery for professional catering designed specifically for restaurants, butcher shops, bars, canteens, supermarkets and professional catering activities. A Team of professionals selects the best suppliers and raw materials every day to ensure the highest quality finished product guaranteeing reliability and safety, the machines produced by the Fimar brand are shipped and used daily all over the world by catering professionals.
