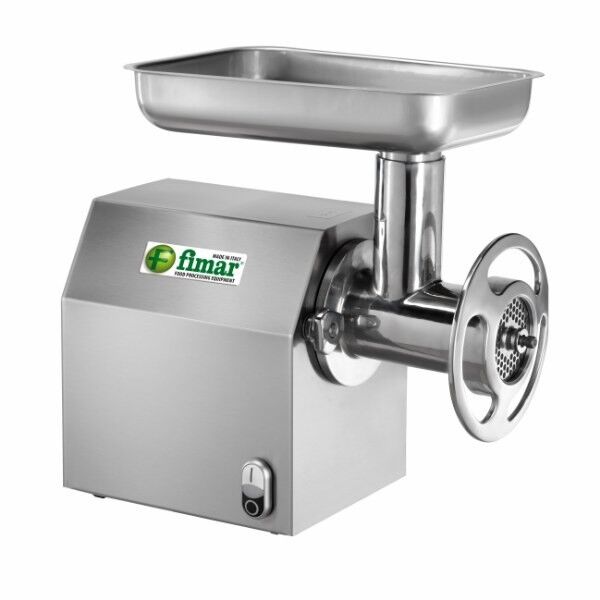

Professional Meat Mincer Fimar 22C Single Phase Cast Iron

Professional meat grinder model 22C

Food grade cast iron grinding unit, single phase power supply

Professional meat grinder fairing stainless steel structure and hopper, this meat grinder is specially designed for processing and producing minced meat.

Model 22C is equipped with an enterprise model grinding system consisting of a stainless steel plate with 6 mm diameter holes already provided and a knife, also made of stainless steel, self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 8 mm and a minimum of 2 mm.

The grinding unit for this model is made of food -gradecast iron specially treated for food contact.

The cast iron grinding unit is completely removable but is not dishwasher or water bath safe.

This professional meat-processing equipment is manufactured with a high-quality polished aluminum outer casing and a stainless steel hopper for product intake.

The meat inlet has a diameter Ø of 52 mm.

The powerful 230-volt, 50 Hz, single-phase motor with 1.1 kWatt output is also equipped with an oil-bath gearbox to ensure maximum efficiency.

Reversing gear is not standard in this model, but can be purchased on request.

There are also low-voltage controls that provide additional protection during processing, in compliance with current European regulations.

The hourly output of this meat grinder is claimed to be between 150 and 250 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-Plates with different diameter holes from 2 mm to 8 mm bore.

-Sacking funnels with 15 or 20 mm diameter outlet

-Stainless steel replacement knife

-Spare parts for repairs

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model 22C
• -Made in Italy
• -Brand Fimar S.p.a.
• -Food grade cast iron grinding unit.
• -Single-phase 230 volt 50 Hz power supply.
• -Power 1.1 kW (1.5 HP)
• -Hourly output 150 - 250 kg/h
• -Structure in Stainless Steel
• -Stainless steel hopper
• -Meat inlet Ø 52 mm
• -Stainless steel plate Ø 6 mm included.
• -Stainless Steel Self-Sharpening Knife.
• -Total dimensions 470x270x450h mm
• -Net weight 26 kg
• -Gross Weight 28 kg
• -Packaging dimensions 540x300xh480 mm

ENTERPRISE system consisting of a grinding chamber, auger, a perforated plate, a knife and a closing handwheel. Different plates are available with holes of different diameters up to a maximum of 8 mm (per European regulations). As standard, the meat grinder comes with a plate with 6 mm diameter holes.

MADE IN ITALY

Equipment manufactured and built in Italy by the company Fimar S.p.a., which has more than 30 years of experience in the design and production of specific machinery for professional catering designed specifically for restaurants, butcher shops, bars, canteens, supermarkets and professional catering activities. A Team of professionals selects the best suppliers and raw materials every day to ensure the highest quality finished product guaranteeing reliability and safety, the machines produced by the Fimar brand are shipped and used daily all over the world by catering professionals.
