Professional Meat Grinder Fama TS12 Single Phase Retro FTSR107

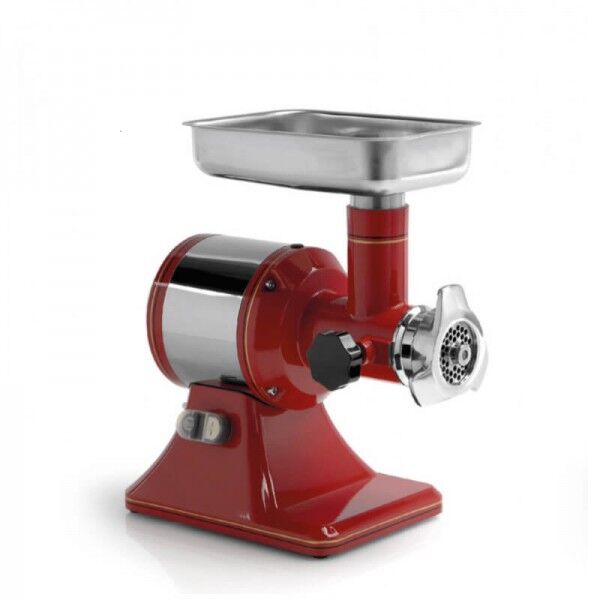

Professional meat grinder model TS12R

Food grade cast iron grinding unit, Retro Series, Single phase power supply

Professional meat grinder made of die-cast and polished aluminum alloy with elegant stainless steel motor cover band.

The internal helical gears are made of oil-bath hardened steel with a ventilated asynchronous motor equipped with thermal safety protection to prevent damage to the motor during long or intensive processing.

The TS 12 R model is equipped with a partially removable enterprise model grinding system consisting of a stainless steel plate with 6-mm diameter holes already provided and a knife, also made of stainless steel, that is self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 8 mm and a minimum of 2 mm.

The meat grinder has an inlet port with a diameter Ø of 52 mm and an outlet port with a diameter Ø of 70 mm

The meat grinder is equipped with an ABS pestle suitable for food contact. The control panel power supply is 24 volts as per current regulations.

The powerful 230-volt, 50-Hz single-phase motor has a power rating of 0.75 kWatt. In this model, thereverse gear is not standard, but can be purchased on request.

The TS12R Fama industrie meat grinder is manufactured entirely in Italy respecting all European CE certifications and regulations.

The hourly output of this meat grinder is stated to be 150-200 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-plates with holes of different diameters from 2mm to 8mm bore.

-kit bagging funnels with 15, 20 or 25mm outlet

-Stainless steel replacement knife

-Spare parts for repairs

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model TS/12R
• -Retro Series
• -Univocal code FTS107
• -Made in Italy
• -Brand Fama industrie
• -Grinding unit made of food-grade cast iron
• -Single-phase power supply 230 volts 50 Hz
• -Power 0.75 kW (1 hp)
• -Hourly output 150-200 kg/h
• -Structure made of die-cast and painted aluminum alloy.
• -Stainless steel motor cover.
• -Stainless steel hopper
• -Stainless steel collection plate
• -ABS pestle
• -24-volt controls
• -CE Standards
• -Meat insertion port 52mm diameter
• -Exit port 60mm diameter
• -Auger revolutions 200 rpm
• -Total dimensions 220x370x440h mm
• -Net weight 19 kg
• -Gross weight 21 kg
• -Packaging dimensions 250x440x440h mm

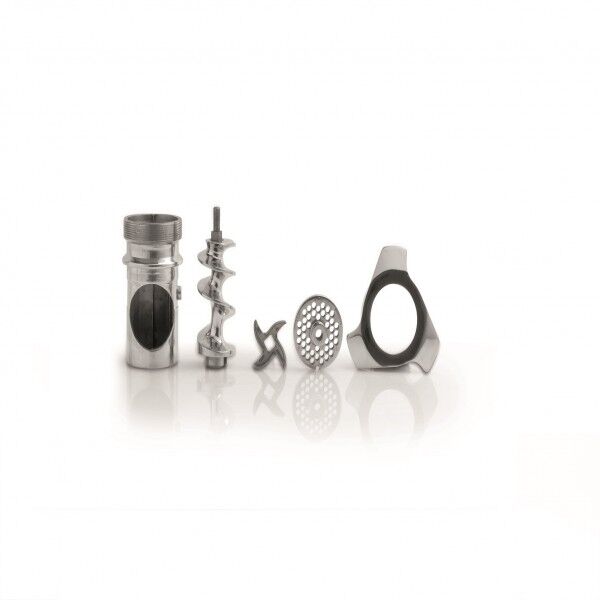

ENTERPRISE system consisting of a grinding chamber, auger, a perforated plate, a knife and a closing handwheel. Different plates are available with holes of different diameters up to a maximum of 8 mm (per European regulations). As standard, the meat grinder comes with a plate with 6 mm diameter holes.

MADE IN ITALY

Machinery manufactured and produced in Italy by Fama industrie, a family-owned company with over 65 years of history and experience in designing and marketing professional catering equipment. It boasts Quality and reliability throughout Italy and the world where it sells and collaborates with professionals in all sectors of the catering industry. The production and design facility is located in Rimini where a team of professionals daily designs and manufactures precision machinery for bars, restaurants, canteens, professional kitchens, hotels and hotels.
