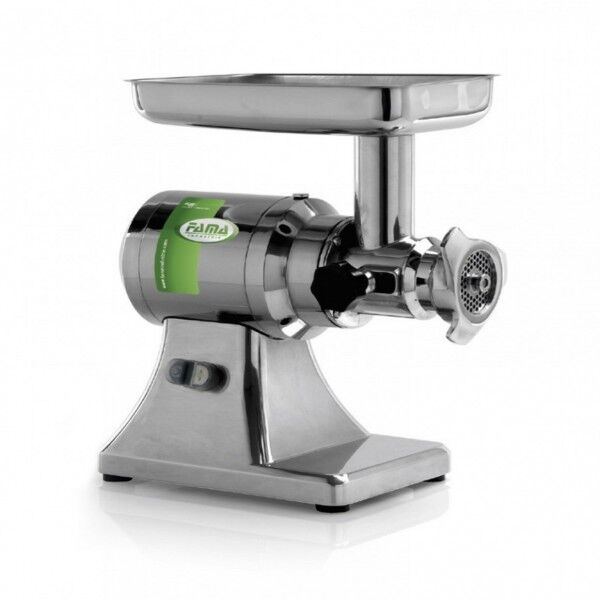

Professional Meat Grinder Fama TS22 Single Phase FTS137

Professional meat grinder model TS22

Stainless steel grinding unit, Single phase power supply

Professional meat grinder made of die-cast and polished aluminum alloy with elegant stainless steel motor cover band.

The internal helical gears are made of oil-bath hardened steel with a ventilated asynchronous motor equipped with thermal safety protection to prevent damage to the motor during long or intensive processing.

The TS 22 model is equipped with a partially removable enterprise model grinding system consisting of a stainless steel plate with 6-mm diameter holes already provided and a knife, also made of stainless steel, that is self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 8 mm and a minimum of 2 mm.

The meat grinder has an inlet port with a diameter Ø of 52 mm and an outlet port with a diameter Ø of 82 mm

The meat grinder is equipped with an ABS pestle suitable for food contact. The control panel power supply is 24 volts as per current regulations.

The powerful 230-Volt, 50-Hz single-phase motor has a power rating of 1.1 kWatt. In this model, thereverse gear is not standard, but can be purchased on request.

The TS22 Fama industrie meat grinder TS22 is manufactured entirely in Italy respecting all European CE certifications and regulations.

The hourly output of this meat grinder is stated to be 300 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-plates with holes of different diameters from 2mm to 8mm bore.

-kit bagging funnels with 15, 20 or 25mm outlet

-Stainless steel replacement knife

-Spare parts for repairs

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model TS/22
• -Unique code FTS137
• -Made in Italy
• -Brand Fama industrie
• -Stainless steel grinding unit
• -Single-phase power supply 230 volts 50 Hz
• -Power 1.1 kW (1.5 hp)
• -Hourly output 300 kg/h
• -Structure made of die-cast and polished aluminum alloy.
• -Stainless steel motor cover.
• -Stainless steel hopper
• -Stainless steel collection plate
• -ABS pestle
• -24-Volt Controls
• -CE Standards
• -Meat insertion port 52 mm diameter
• -Exit port 82 mm diameter
• -Auger revolutions 140 rpm
• -Total dimensions 240x440x510h mm
• -Net weight 24 kg
• -Gross weight 26.5 kg
• -Packaging dimensions 300x480x510h mm

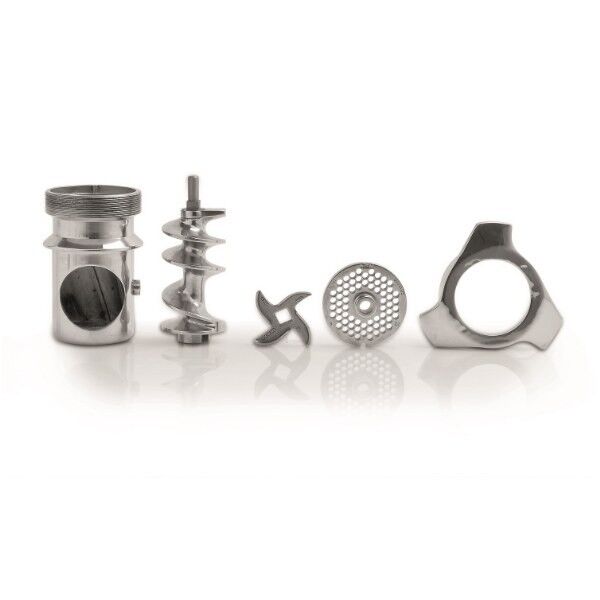

ENTERPRISE system consisting of a grinding chamber, auger, a perforated plate, a knife and a closing handwheel. Different plates are available with holes of different diameters up to a maximum of 8 mm (per European regulations). As standard, the meat grinder comes with a plate with 6 mm diameter holes.

MADE IN ITALY

Machinery manufactured and produced in Italy by Fama industrie, a family-owned company with over 65 years of history and experience in designing and marketing professional catering equipment. It boasts Quality and reliability throughout Italy and the world where it sells and collaborates with professionals in all sectors of the catering industry. The production and design facility is located in Rimini where a team of professionals daily designs and manufactures precision machinery for bars, restaurants, canteens, professional kitchens, hotels and hotels.
