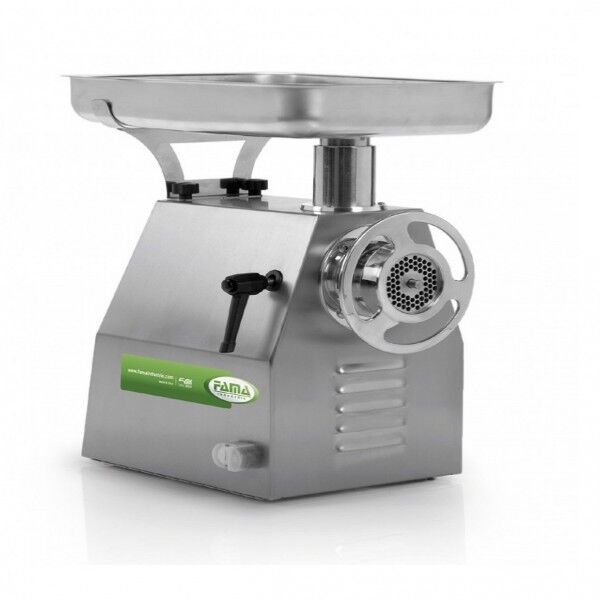

Professional Meat Grinder Fama TI22R Single Phase FTI137R

Professional meat grinder model TI 22R

Stainless Steel Grinding Unit, Single Phase Power Supply

A very powerful professional meat grinder fairing made of stainless steel, this machinery is ideal for efficient meat grinding and processing.

The machinery has a ventilated asynchronous motor with thermal safety protection and a hermetic oil-bath gearbox to prevent damage to the motor during long or intensive processing.

The TI 22 R model is equipped with a partially removable enterprise model food-treated cast iron grinding system consisting of a stainless steel plate with 6-mm diameter holes already provided and a knife, also made of stainless steel, that is self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 8 mm and a minimum of 2 mm.

The meat grinder has an inlet port with a diameter Ø of 52 mm and an outlet port with a diameter Ø of 82 mm

The meat grinder is equipped with an ABS pestle suitable for food contact. The control panel power supply is 24 volts as per current regulations.

The thermoplastic start button is protected by a latex membrane to provide additional safety during processing.

The powerful asynchronous and ventilated single-phase 230-volt, 50 Hz motor has a power rating of 1.5 kWatts.Reverse gear is not standard in this model, but can be purchased as an option.

The TI22R Fama industrie meat grinder is manufactured entirely in Italy respecting all European CE certifications and regulations.

The hourly output of this meat grinder is claimed to be between 350 and 400 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-plates with holes of different diameters from 2mm to 8mm bore.

-kit bagging funnels with 15, 20 or 25mm outlet

-Spare stainless steel knife

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model TI/22R
• -Univocal code FTI137R
• -Made in Italy
• -Brand Fama industrie
• -Stainless Steel Grinding Unit
• -Single-phase power supply 230 volts 50 Hz
• -Power 1.5 kW (2 hp)
• -Hourly output 350-400 kg/h
• -Stainless steel fairing structure
• -Stainless steel hopper
• -Stainless steel collection plate
• -Pestle made of ABS
• -24-Volt Controls
• -CE Standards
• -Meat insertion port diameter ø52 mm
• -Exit port diameter ø70 mm
• -Auger revolutions 140 rpm
• -Total dimensions 260x450x530h mm
• -Net weight 32 kg
• -Gross weight 35 kg
• -Packaging dimensions 370x590x550h mm

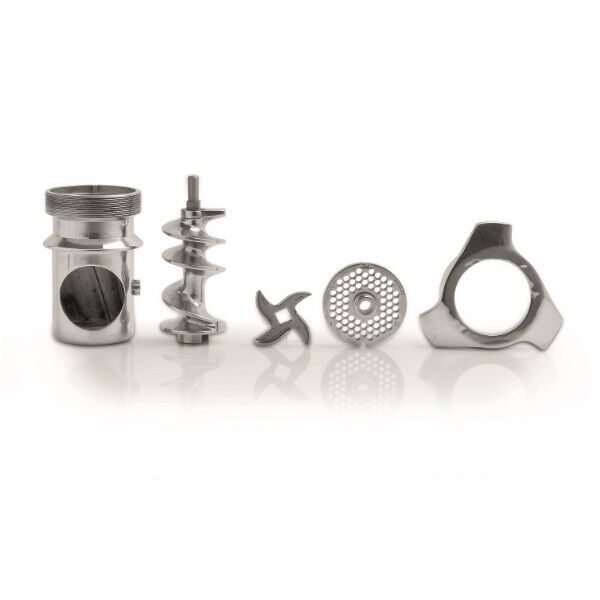

ENTERPRISE system consisting of a grinding chamber, auger, a perforated plate, a knife and a closing handwheel. Different plates are available with holes of different diameters up to a maximum of 8 mm (per European regulations). As standard, the meat grinder comes with a plate with 6 mm diameter holes.

MADE IN ITALY

Machinery manufactured and produced in Italy by Fama industrie, a family-owned company with over 65 years of history and experience in designing and marketing professional catering equipment. It boasts Quality and reliability throughout Italy and the world where it sells and collaborates with professionals in all sectors of the catering industry. The production and design facility is located in Rimini where a team of professionals daily designs and manufactures precision machinery for bars, restaurants, canteens, professional kitchens, hotels and hotels.
