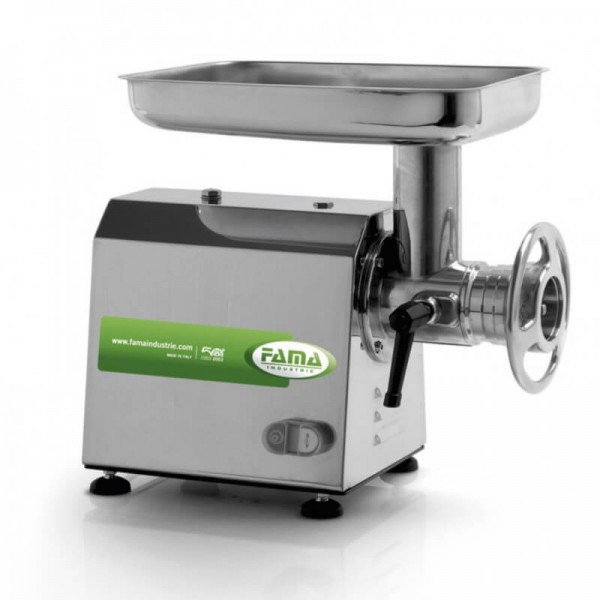

Professional Meat Grinder Fama TI22 Single Phase Unger FTI137UT

Professional meat grinder model TI22 Unger Total

Stainless Steel Grinding Unit, Single Phase Power Supply

A professional meat grinder made of polished stainless steel, the unger grinding system allows for fine meat processing, making the machine ideal for sausage production.

The internal helical gears are oil-bath hardened steel with a ventilated asynchronous motor equipped with thermal safety protection to prevent damage to the motor during long or intensive processing.

The TI 22 model is equipped with a partially removable Unger Total model grinding system consisting of two stainless steel plates with 6- and 10-mm-diameter holes and a roughing plate already supplied and two knives, also made of stainless steel, self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 20 mm and a minimum of 2 mm.

The meat grinder has an inlet port with a diameter Ø of 52 mm and an outlet port with a diameter Ø of 82 mm

The meat grinder is equipped with an ABS pestle suitable for food contact. The control panel power supply is 24 volts as per current regulations.

The powerful 230-Volt, 50-Hz single-phase motor has a power rating of 1.1 kWatt.Reverse gear is not standard in this model, but can be purchased on request.

The TI22 Fama industrie meat grinder is manufactured entirely in Italy respecting all European CE certifications and regulations.

The hourly output of this meat grinder is stated to be 300 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-plates with holes of different diameters from 2mm to 20 mm bore.

-kit bagging funnels with 15, 20 or 25mm outlet

-Spare stainless steel knife

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model TI/22
• -Univocal code FTI137UT
• -Made in Italy
• -Brand Fama industrie
• -Stainless Steel Grinding Unit
• -Single-phase power supply 230 volts 50 Hz
• -Power 1.1 kW (1.5 hp)
• -Ventilated motor
• -Hourly output 300 kg/h
• -Polished stainless steel structure
• -Stainless steel hopper
• -Stainless steel collection plate
• -Stainless steel plates with 6 and 10 mm holes included
• -Stainless steel roughing plate included
• -Stainless steel knives included
• -ABS pestle
• -24-volt controls
• -CCE standards
• -Meat insertion port diameter ø52 mm
• -Exit port diameter ø82 mm
• -Auger revolutions 140 rpm
• -Total dimensions 215x440x440h mm
• -Net weight 26 kg
• -Gross Weight 29 kg
• -Packaging dimensions 300x480x520h mm

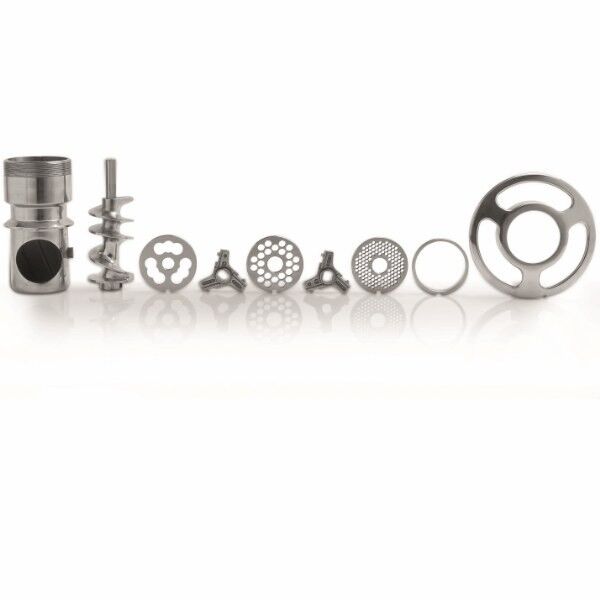

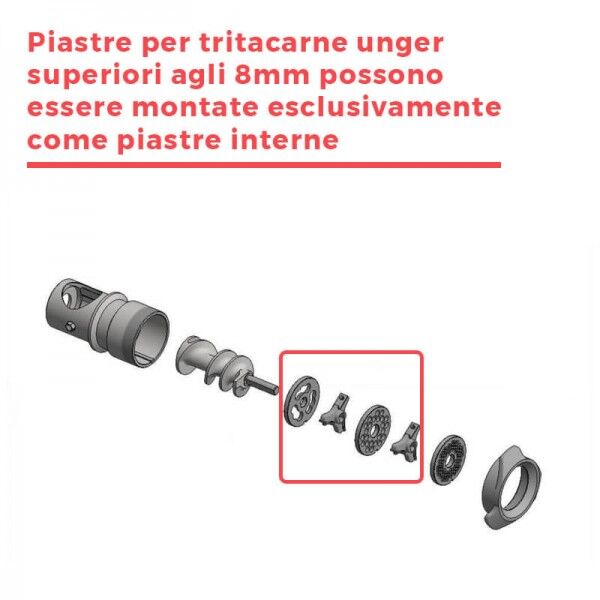

Total UNGER system consisting of grinding chamber, auger, three perforated plates, two knives and closing hand wheel. Different plates with holes of different diameters are available, unger plates with diameter larger than Ø 8 mm can be mounted only as inner plates (per European regulation). As standard, the mincer comes with a plate with 0 , 6 and 10 mm diameter holes.

MADE IN ITALY

Machinery manufactured and produced in Italy by Fama industrie, a family-owned company with over 65 years of history and experience in designing and marketing professional catering equipment. It boasts Quality and reliability throughout Italy and the world where it sells and collaborates with professionals in all sectors of the catering industry. The production and design facility is located in Rimini where a team of professionals daily designs and manufactures precision machinery for bars, restaurants, canteens, professional kitchens, hotels and hotels.
