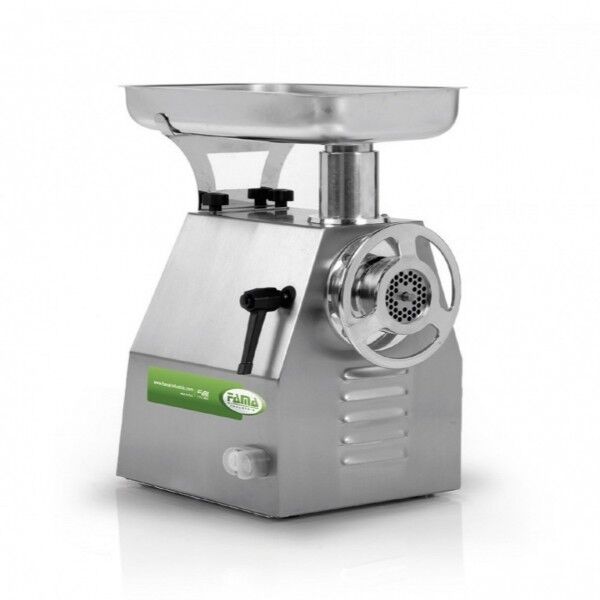

Professional Meat Grinder Fama TI12R Single Phase Unger FTI107RU

Professional Meat Grinder Model TI12R Half Unger

Food grade cast iron grinding unit, Single phase power supply

Very powerful professional meat grinder fairing made of stainless steel, this machinery is ideal for efficient grinding and fine processing of meat, pefect for sausage production.

The internal helical gears are oil-bath hardened steel with a ventilated asynchronous motor equipped with thermal safety protection to prevent damage to the motor during long or intensive processing.

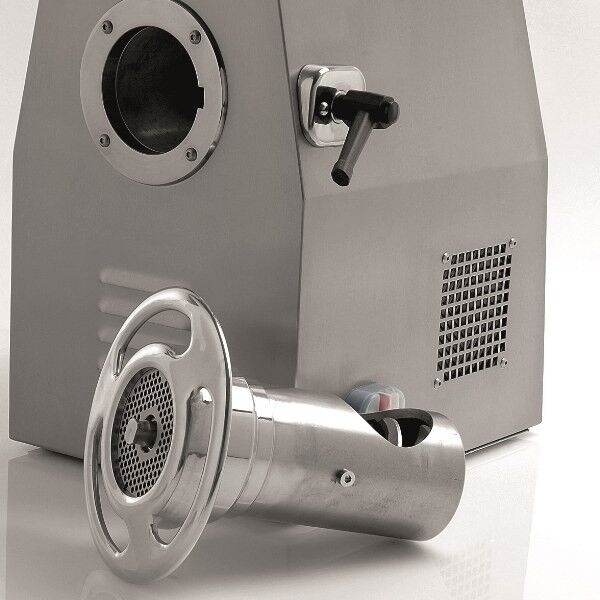

The TI 12 R model is equipped with a partially removable 1/2 Unger model grinding system consisting of a stainless steel plate with 6-mm diameter holes and a roughing plate already supplied and a knife, also made of stainless steel, self-sharpening. Other plates with different hole diameters are also available for separate purchase with a maximum hole diameter of 20 mm and a minimum of 2 mm.

The meat grinder has an inlet port with a diameter Ø of 52 mm and an outlet port with a diameter Ø of 70 mm

The meat grinder is equipped with an ABS pestle suitable for food contact. The control panel power supply is 24 volts as per current regulations.

The powerful asynchronous and ventilated single-phase 230-volt, 50 Hz motor has a power rating of 1.1 kWatt.Reverse gear is not standard in this model, but can be purchased on request.

The Unger Fama industries TI12R Unger meat grinder is manufactured entirely in Italy, complying with all European CE certifications and regulations.

The hourly output of this meat grinder is stated to be 250 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-plates with holes of different diameters from 2mm to 20 mm bore.

-kit bagging funnels with 15, 20 or 25 mm outlet

-Spare stainless steel knife

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model TI/12R Unger
• -Unger code FTI107UR
• -Made in Italy
• -Brand Fama industries
• -Food grade cast iron grinding unit.
• -Single-phase power supply 230 volts 50 Hz
• -Power 1.1 kW (1.5 hp)
• -Ventilated motor
• -Hourly output 250 kg/h
• -Shaped structure in polished stainless steel.
• -Stainless steel hopper
• -Stainless steel collection plate
• -Stainless steel plate with 6 mm holes included
• -Stainless steel roughing plate included
• -Stainless steel knife included
• -ABS pestle
• -24-volt controls
• -CE Standards
• -Meat insertion port diameter ø52 mm
• -Exit port diameter ø70 mm
• -Auger revolutions 140 rpm
• -Total dimensions 260x400x490h mm
• -Net weight 27 kg
• -Gross weight 30 kg
• -Packaging dimensions 300x480x520h mm

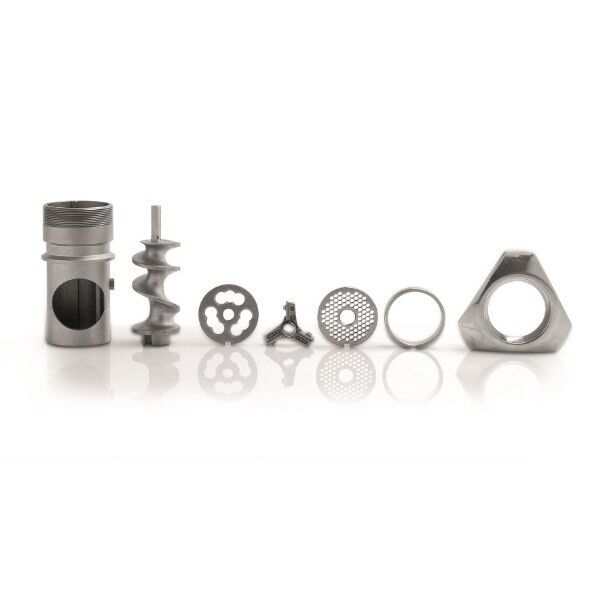

Mezzo UNGER system consisting of grinding chamber, auger, two perforated plates, one knife and closing handwheel. Different plates with holes of different diameters are available, unger plates with diameter larger than Ø 8 mm can be mounted only as inner plates (per European regulations). As standard, the mincer comes with a plate with 0 and 6 mm diameter holes.

MADE IN ITALY

Machinery manufactured and produced in Italy by Fama industrie, a family-owned company with over 65 years of history and experience in designing and marketing professional catering equipment. It boasts Quality and reliability throughout Italy and the world where it sells and collaborates with professionals in all sectors of the catering industry. The production and design facility is located in Rimini where a team of professionals daily designs and manufactures precision machinery for bars, restaurants, canteens, professional kitchens, hotels and hotels.
