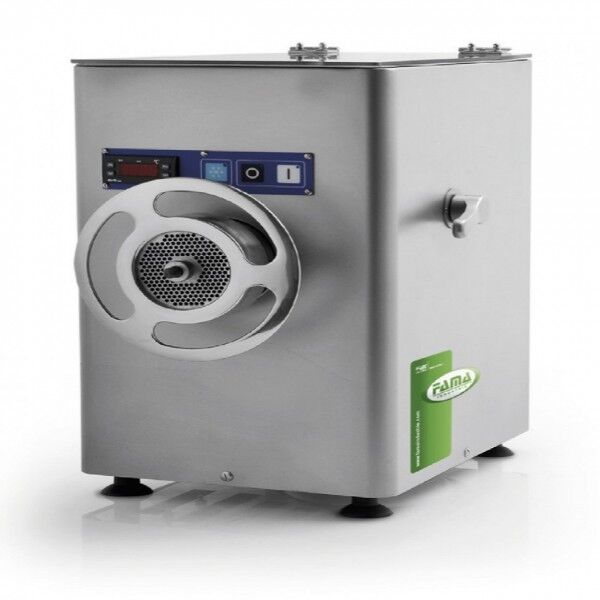

Fama TR32 Three-Phase Refrigerated Meat Grinder FTR200

Refrigerated professional meat grinder model TR32

Stainless Steel Grinding Unit, Three Phase Power Supply

Professional refrigerated meat grinder with a solid one-piece stainless steel construction, perfect for grinding and processing meat while it is kept fresh in butcher shops and supermarkets.

The internal helical gears are oil-bath hardened steel with asynchronous and ventilated motor equipped with thermal safety protection to prevent damage to the motor during long or intensive processing.

The TR 32 model is equipped with a partially removableenterprise model grinding system consisting of a stainless steel plate with 6-mm diameter holes already provided and a knife, also made of stainless steel, that is self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 8 mm and a minimum of 2 mm.

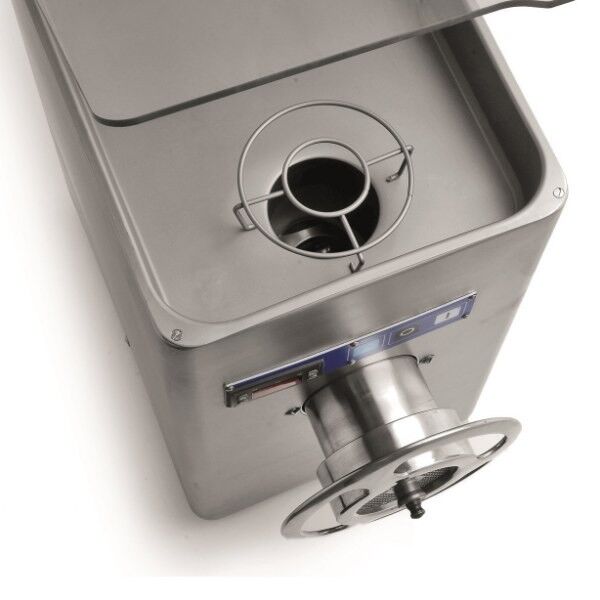

The meat grinder has an inlet port with a diameter Ø of 52 mm covered through a transparent plexiglass cover and an outlet port with a diameter Ø of 98 mm

The meat grinder is equipped with an ABS pestle suitable for food contact. The control panel power supply is 24 volts as per current regulations.

The powerful three-phase motor of 230-400 volts, 50 Hz, with an output of 1.85 kWatt.

Refrigeration is by means of R134a gas that allows a temperature, adjustable by thermostat, between -2°C and 4°C

The TR32 meat grinder Fama industrie is manufactured entirely in Italy respecting all European CE certifications and regulations.

The hourly output of this meat grinder is stated to be 450 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-plates with holes of different diameters from 2mm to 8 mm bore.

-kit bagging funnels with 15, 20 or 25mm outlet

-Spare stainless steel knife

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model TR/32
• -Univocal code FTR200
• -Made in Italy
• -Brand Fama industrie
• -Stainless Steel Grinding Unit
• -Three-phase power supply 230-400 volts 50 Hz
• -Power 1.85 kW (1.5 hp)
• -Hourly output 450 kg/h
• -Stainless steel fairing structure
• -Stainless steel hopper
• -Stainless steel collection plate
• -Basket made of ABS
• -24-Volt Controls
• -CE Standards
• -Meat insertion port diameter ø52 mm
• -Exit port diameter ø98 mm
• -Auger revolutions 120 rpm
• -Total dimensions 350x530x555h mm
• -Net weight 56 kg
• -Gross Weight 59 kg
• -Packaging dimensions 430x600x660h mm

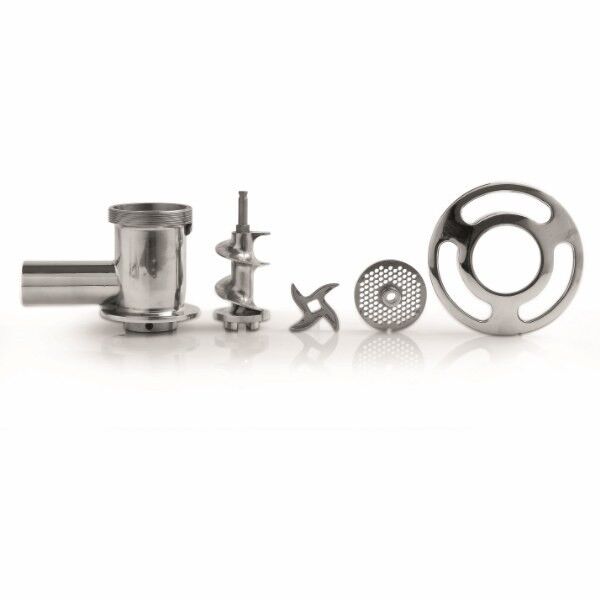

ENTERPRISE system consisting of a grinding chamber, auger, a perforated plate, a knife and a closing handwheel. Different plates are available with holes of different diameters up to a maximum of 8 mm (per European regulations). As standard, the meat grinder comes with a plate with 6-mm-diameter holes.

MADE IN ITALY

Machinery manufactured and produced in Italy by Fama industrie, a family-owned company with over 65 years of history and experience in designing and marketing professional catering equipment. It boasts Quality and reliability throughout Italy and the world where it sells and collaborates with professionals in all sectors of the catering industry. The production and design facility is located in Rimini where a team of professionals daily designs and manufactures precision machinery for bars, restaurants, canteens, professional kitchens, hotels and hotels.
