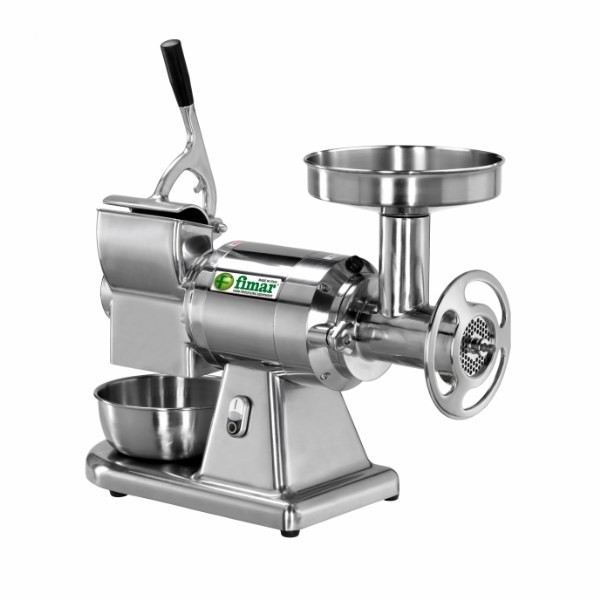

Professional Meat Mincer Grater Fimar 22AE Single Phase

Fimar Fimar

Matched professional meat grinder grater 22AE Enterprise.

Polished aluminum frame. Single-phase power supply, Power 1.1 kWatt.

Partially removable grinding unit made of food-grade treated cast iron.

140x75 mm grater with stainless steel roller.


New product

Buyable

Il prodotto potrebbe presentare differenze estetiche dall'immagine pubblicata.


Compare

PREZZO OFFERTA DA
€ 1.058,79 -43% DISCOUNT

€ 603,51
(€ 736,28 IVA Incl.)

CHOOSE THE MODEL

CUSTOMIZE!

Shipping Cost

Professional meat grinder grater model 22AE

Food grade cast iron grinding unit, single phase power supply

Matched professional grater meat grinder made of polished aluminum, this meat grinder is specially designed for the processing and production of minced meat.

Model22AE has an enterprise model grinding system consisting of a stainless steel plate with 6 mm diameter holes already provided and a knife, also made of stainless steel, that is self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 8 mm and a minimum of 2 mm.

The grinding unit for this model is made of food-gradecast iron specially treated for food contact and is completely removable, the elements cannot be washed in a water bath or dishwasher or can be placed in the refrigerator, in accordance with HACCP hygienic regulations, without being previously cleaned of meat residues.

This professional meat-processing equipment is manufactured with a high-quality aluminum frame and a hopper for product input, also made of stainless steel.

The meat inlet mouth has a diameter Ø of 52 mm.

The polished aluminum inlet of the grater has dimensions of 140x75 mm.

The powerful 230-volt, 50 Hz, single-phase motor with 1.1 kWatt output is equipped with an oil-bath gearbox to ensure maximum efficiency.

Reversing gear is not standard in this model; it can be purchased on request.

There are also low-voltage controls, a protection grid and a microswitch lever press in the grater that provides additional protection during processing, the safety device will stop the rotary movement in compliance with current European regulations when the grater lever is in the raised position.

The hourly output of this meat grinder is claimed to be between 150 and 250 kg/h, while the output of the grater is 40 kg/h

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-Plates with different hole diameters from 2 mm to 8 mm holes

-Drums for bagging with 15 or 8 mm diameter outlet

-Stainless steel replacement knife

-Spare parts for repairs

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

  • -Model 22AE
  • -Made in Italy
  • -Brand Fimar S.p.a.
  • -Food grade cast iron grinding unit.
  • -Single-phase 230 volt 50 Hz power supply.
  • -Power 1.1 kW (1.5 HP)
  • -Hourly meat output 150 - 250 kg/h
  • -Hourly cheese production: 40 kg/h
  • -Polished aluminum structure
  • -Stainless steel grater housing
  • -Stainless steel grater roller
  • -Aluminum grater mouth.
  • -Meat inlet opening Ø 52 mm
  • -Cheese inlet mouth 140x75 mm
  • -Stainless steel plate Ø 6 mm included.
  • -Stainless steel self-sharpening knife.
  • -Pressor lever safety microswitch
  • -Bottom protection grid
  • -Total dimensions 630x305x510-660h mm
  • -Net weight 27 kg
  • -Gross Weight 30 kg
  • -Packaging dimensions 750x300x480h mm

ENTERPRISE system consisting of a grinding chamber, auger, a perforated plate, a knife and a closing hand wheel. Different plates are available with holes of different diameters up to a maximum of 8 mm (per European regulations). As standard, the meat grinder comes with a plate with 6 mm diameter holes.

MADE IN ITALY

Equipment manufactured and built in Italy by the company Fimar S.p.a., which has more than 30 years of experience in the design and production of specific machinery for professional catering designed specifically for restaurants, butcher shops, bars, canteens, supermarkets and professional catering activities. A Team of professionals selects the best suppliers and raw materials every day to ensure the highest quality finished product guaranteeing reliability and safety, the machines produced by the Fimar brand are shipped and used daily all over the world by catering professionals.

View more products from the FIMAR SPA brand

Width (cm) Sixty three
Depth (cm) Thirty five
Height (cm) Fifty two
Net weight (kg) Twenty seven
Power (kW) 1.1
Power supply Single Phase 230 Volt
Color Aluminum
Material Aluminum
Accessories included Piastra inox da Ø 6 mm, coltello inox autoaffilante
Hourly meat production (kg/h) Three hundred
Ø Flesh insertion port (mm) Fifty two
Ø Plate holes provided (mm) Six
Frame Aluminum
Meat grinder series Series 22
Refrigerated No
Dimensions Grater Mouth (mm) 140X75
External structure Alluminio Lucidato
Hourly cheese production (kg/h) Forty
Lower protective grille You
Stainless steel roller Supplied
Grinding group Ghisa alimentare trattata per alimenti
Ventilated Motor No
Type of grinding unit Enterprise (1 coltello + 1 Piastra)
Reversing Acquistabile a richiesta
