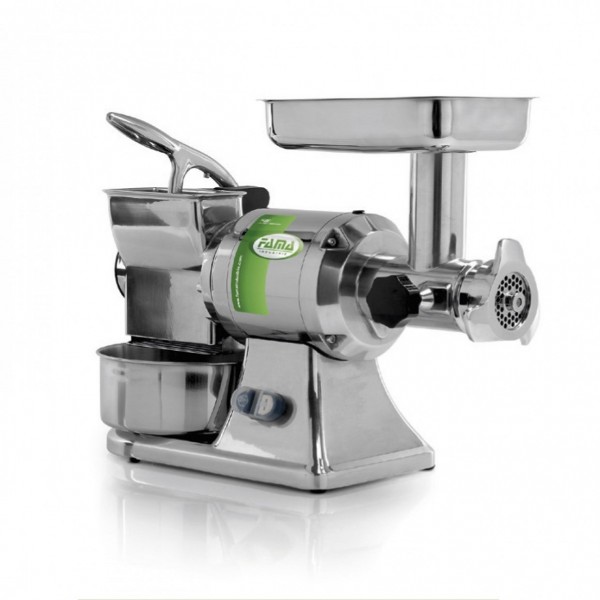

Professional Meat Mincer Grater Fama TG12 Single Phase FTG127

Professional meat grinder grater model TG12

Food grade cast iron grinding unit, single phase power supply

Matched professional grater meat grinder made of die-cast aluminum, this meat grinder is specially designed for processing and producing minced meat.

Model TG12 is equipped with an enterprise model grinding system consisting of a stainless steel plate with 6 mm diameter holes already provided and a knife, also made of stainless steel, that is self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 8 mm and a minimum of 2 mm.

The grinding unit for this model is made of food-grade cast iron.

This professional meat processing equipment is manufactured with a high-quality aluminum frame and a stainless steel product feed hopper.

The meat outlet has a diameter Ø of 70 mm.

The polished aluminum grater inlet mouth has dimensions of 140x80 mm; it is possible to purchase this model with the stainless steel grater roller upon request.

The powerful 230-volt, 50 Hz, single-phase motor with 0.75 kWatt output is equipped with oil-bath gears to ensure maximum efficiency.

Reversing gear is not standard in this model, but can be purchased on request.

ABS pestle included with the product

There are also low-voltage controls, a protection grid on the grater mouth and a safety microswitch in the grater that provides additional protection during processing.The safety device will stop the rotary movement in compliance with current European regulations when the grater lever is in the raised position.

The hourly output of this meat grinder is stated to be 200 kg/h, while the output of the grater is 50 kg/h

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-Plates with different hole diameters from 2 mm to 8 mm holes

-Sacking funnels with 15 or 8 mm diameter outlet

-Spare stainless steel knife

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Technical features:

• -Model TG12
• -Made in Italy
• -Brand Fama Industrie.
• -Food grade cast iron grinding unit.
• -Single-phase 230 volt 50 Hz power supply.
• -Power 0.75 kW (1 HP)
• -Hourly meat output 200 kg/h
• -Hourly cheese production: 50 kg/h
• -Polished aluminum structure
• -Stainless steel grater housing
• -Steel grater roller
• -Steel grater mouth.
• -Stainless steel collection tray
• -Stainless steel cheese bowl
• -ABS pestle included
• -Meat inlet port Ø 60 mm
• -Cheese inlet port 140x80 mm
• -Grater speed 1400 revolutions per minute.
• -Stainless steel plate Ø 6 mm included.
• -Self-sharpening stainless steel knife
• -Microswitch for grater safety.
• -Bottom protection grid
• -Total dimensions 200x550x460h mm
• -Net weight 22 kg
• -Gross weight 25 kg
• -Packaging dimensions 290x600x430h mm

ENTERPRISE system consisting of a grinding chamber, auger, a perforated plate, a knife and a closing hand wheel. Different plates are available with different hole diameters up to a maximum of 8 mm (per European regulation). As standard, the meat grinder comes with a plate with 6 mm diameter holes.

MADE IN ITALY

Machinery manufactured and produced in Italy by Fama industrie, a family-owned company with over 65 years of history and experience in designing and marketing professional catering equipment. It boasts Quality and reliability throughout Italy and the world where it sells and collaborates with professionals in all sectors of the catering industry. The production and design facility is located in Rimini where a team of professionals daily designs and manufactures precision machinery for bars, restaurants, canteens, professional kitchens, hotels and hotels.
