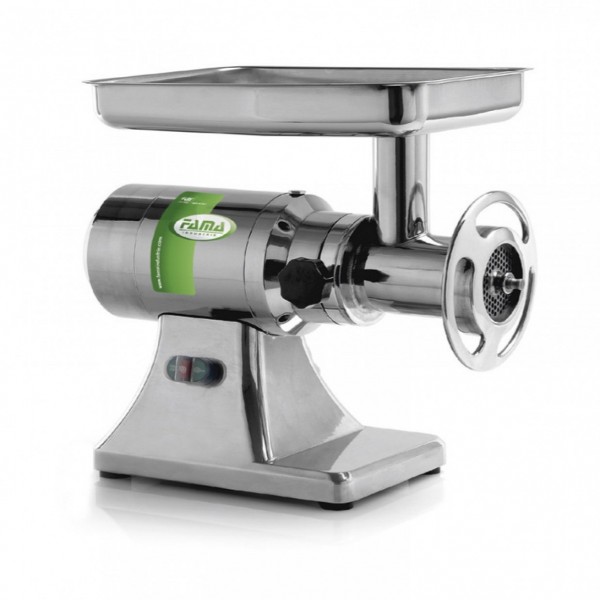

Professional meat grinder model TS32 ECO FTS146
Three-phase power supply, Power 1.5 kWatt.
Food grade cast iron grinding unit
Made of aluminum alloy with stainless steel band
FAMFTS146
New product
Buyable
Warning: Last items in stock!
Re-Stock From:
Il prodotto potrebbe presentare differenze estetiche dall'immagine pubblicata.
Professional meat grinder made of die-cast and polished aluminum alloy with elegant stainless steel motor cover band.
The internal helical gears are made of oil-bath hardened steel with a ventilated asynchronous motor equipped with thermal safety protection to prevent damage to the motor during long or intensive processing.
The TS 32 ECO is equipped with a partially removable and easily disassembledenterprise model grinding system consisting of a stainless steel plate with 6-mm diameter holes already supplied and a knife, also made of stainless steel, that is self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 8 mm and a minimum of 2 mm.
The meat grinder has an inlet port with a diameter Ø of 52 mm and an outlet port with a diameter Ø of 98 mm
The meat grinder is equipped with an ABS pestle suitable for food contact. The control panel power supply is 24 volts as per current regulations.
The powerful three-phase motor of 230-400 volts, 50 Hz, with an output of 1.5 kWatt.Reverse gear is standard in this model.
The TS32ECO Fama industrie meat grinder TS32ECO is manufactured entirely in Italy respecting all European CE certifications and regulations.
The hourly output of this meat grinder is claimed to be 400 kg/h.
ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:
-plates with holes of different diameters from 2mm to 8 mm bore.
-kit bagging funnels with 15, 20 or 25mm outlet
-Stainless steel replacement knife
-Spare parts for repairs
All accessories and spare parts can be found in the "Accessories" section of this product sheet.
Specifications:
ENTERPRISE system consisting of a grinding chamber, auger, a perforated plate, a knife and a closing hand wheel. Different plates are available with different hole diameters up to a maximum of 8 mm (per European regulation). As standard, the meat grinder comes with a plate with 6 mm diameter holes.
Machinery manufactured and produced in Italy by Fama industrie, a family-owned company with over 65 years of history and experience in designing and marketing professional catering equipment. It boasts Quality and reliability throughout Italy and the world where it sells and collaborates with professionals in all sectors of the catering industry. The production and design facility is located in Rimini where a team of professionals daily designs and manufactures precision machinery for bars, restaurants, canteens, professional kitchens, hotels and hotels.
Width (cm) | Twenty four |
Depth (cm) | Fifty |
Height (cm) | Fifty one |
Net weight (kg) | Thirty one |
Power (kW) | 1.5 |
Power supply | Three-Phase 380 Volt |
Color | Stainless steel |
Material | Aluminum |
Accessories included | Piastra inox da Ø 6 mm, coltello inox autoaffilante |
Hourly meat production (kg/h) | Four hundred |
Screw Speed (RPM/Min) | One hundred forty |
Ø Outlet port (mm) | Ninety eight |
Ø Flesh insertion port (mm) | Fifty two |
Ø Plate holes provided (mm) | Six |
Frame | Aluminum |
Meat grinder series | Series 32 |
Refrigerated | No |
External structure | Alluminio |
Grinding group | Ghisa alimentare trattata per alimenti |
Ventilated Motor | Si |
Type of grinding unit | Enterprise (1 coltello + 1 Piastra) |
Reversing | Sì |
Fama TS32 Three-Phase Professional Meat Grinder FTS146
