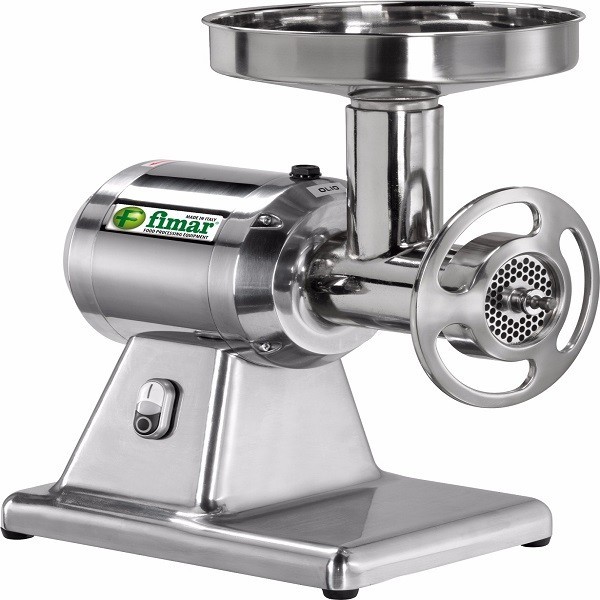

Professional Meat Grinder Fimar 22SN three-phase Unger Inox

Professional meat grinder model 22SN Unger

Stainless steel grinding unit, three-phase power supply

A professional meat grinder with a polished aluminum frame, this meat grinder is specially designed for processing and producing minced meat.

Model 22SN is equipped with a Unger model grinding system consisting of a stainless steel roughing plate and two plates with 4.5- and 8-mm diameter holes already included and a knife, also made of stainless steel, that is self-sharpening. Other plates with different hole diameters are also available for separate purchase with a maximum hole diameter of 20 mm and a minimum of 2 mm.

The grinding unit for this model is made of stainless steel and is partially removable; the elements can be washed in a water bath or dishwasher.

This professional meat processing equipment is manufactured with a polished aluminum frame and a stainless steel product inlet hopper.

The meat inlet has a diameter Ø of 52 mm.

The powerful 380-400 Volt, 50 Hz, three-phase motor with 1.1 kWatt output is equipped with oil-bath gears to ensure maximum efficiency.Reversing gear is not standard in this model, but can be purchased upon request.

There are also low-voltage controls that allow the machine to be used without risk.

The hourly output of this meat grinder is claimed to be between 150 and 250 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-Plates with different diameter holes from 2 mm to 20 mm bore.

-Sacking drums with 15 or 20 mm diameter outlet

-Stainless steel replacement knife

-Spare parts for repairs

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model 22SN
• -Made in Italy
• -Brand Fimar S.p.a.
• -Stainless steel grinding unit.
• -Three-phase 380-400 volt 50 Hz power supply.
• -Power 1.1 kW (1.5 HP)
• -Hourly output 150 - 250 kg/h
• -Aluminum structure
• -Stainless steel hopper
• -Meat inlet Ø 52 mm
• -Stainless steel plate Ø 4.5 and 8 mm included.
• -Stainless Steel Roughing Plate.
• -Stainless Steel self-sharpening knife.
• -Total dimensions 450x290x520h mm
• -Net weight 23 kg
• -Gross Weight 25 kg
• -Packaging dimensions 540x300x480h mm

UNGER system consisting of grinding chamber, auger, three perforated plates, two knives and closing hand wheel. Different plates with holes of different diameters are available, unger plates with diameter larger than Ø 8 mm can be mounted only as inner plates (per European regulations). As standard, the meat grinder comes with a plate with 6 mm diameter holes.

MADE IN ITALY

Equipment manufactured and built in Italy by the company Fimar S.p.a., which has more than 30 years of experience in the design and production of specific machinery for professional catering designed specifically for restaurants, butcher shops, bars, canteens, supermarkets and professional catering activities. A Team of professionals selects the best suppliers and raw materials every day to ensure the highest quality finished product guaranteeing reliability and safety, the machines produced by the Fimar brand are shipped and used daily all over the world by catering professionals.
