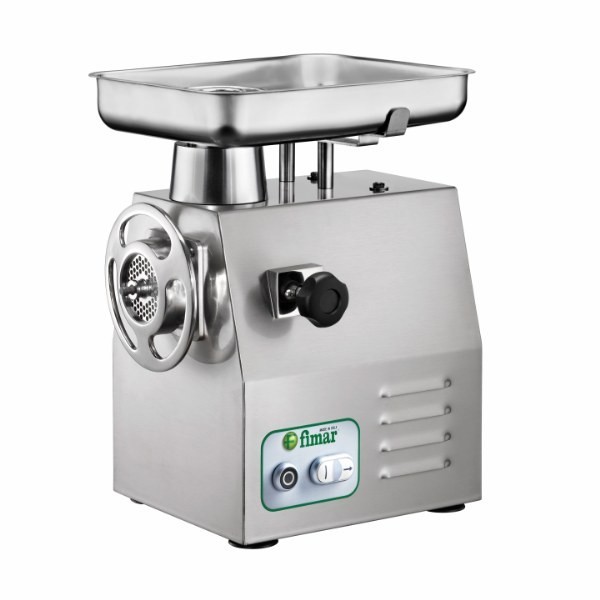

Professional Meat Grinder Fimar 22RG three-phase Unger Inox

Professional meat grinder model 22RG Unger

Stainless steel grinding unit, three-phase power supply

A professional shrouded meat grinder made of stainless steel, this meat grinder is specially designed for the processing and production of minced meat.

Model 22RG is equipped with a Unger model grinding system consisting of a stainless steel roughing plate and two plates with 4.5- and 8-mm-diameter holes already provided and a knife, also made of stainless steel, that is self-sharpening. Other plates with different hole diameters are also available for separate purchase with a maximum hole diameter of 20 mm and a minimum of 2 mm.

The grinding unit for this model is made of stainless steel and is partially removable; the elements can be washed in a water bath or dishwasher.

This professional meat-processing equipment is manufactured with a high-quality stainless steel outer casing and a hopper for product insertion also made of stainless steel.

The meat inlet has a diameter of 64 mm.

The powerful 380-400 volts, 50 Hz, three-phase motor with 1.1 kWatt output also features reverse, oil-bath gearbox to ensure maximum efficiency.

There are also low-voltage controls and a micro safety switch on the hopper that provides additional protection during processing, the safety device will stop the rotary motion in compliance with current European regulations.

The hourly output of this meat grinder is claimed to be between 200 and 300 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-Plates with different diameter holes from 2 mm to 20 mm bore.

-Sacking drums with 15 or 20 mm diameter outlet

-Stainless steel replacement knife

-Spare parts for repairs

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model 22RG Unger
• -Made in Italy
• -Brand Fimar S.p.a.
• -Stainless Steel Grinding Unit.
• -Three-phase 380-400 volt 50 Hz power supply.
• -Power 1.1 kW (1.5 HP)
• -Hourly output 200-300 kg/h
• -Stainless Steel Structure
• -Stainless Steel Tray
• -Meat inlet Ø 64 mm
• -Stainless Steel plates Ø 4.5 and 8 mm included.
• -Stainless steel roughing plate included
• -Stainless steel self-sharpening knife.
• -Total dimensions 410x310x490h mm
• -Net weight 32 kg
• -Gross Weight 38 kg
• -Packaging dimensions 570x420x680h mm

UNGER system consisting of grinding chamber, auger, three perforated plates, two knives and closing hand wheel. Different plates with holes of different diameters are available, unger plates with diameter larger than Ø 8 mm can be mounted only as inner plates (per European regulation). As standard, the meat grinder comes with a plate with 6 mm diameter holes.

MADE IN ITALY

Equipment manufactured and built in Italy by the company Fimar S.p.a., which has more than 30 years of experience in the design and production of specific machinery for professional catering designed specifically for restaurants, butcher shops, bars, canteens, supermarkets and professional catering activities. A Team of professionals selects the best suppliers and raw materials every day to ensure the highest quality finished product guaranteeing reliability and safety, the machines produced by the Fimar brand are shipped and used daily all over the world by catering professionals.
