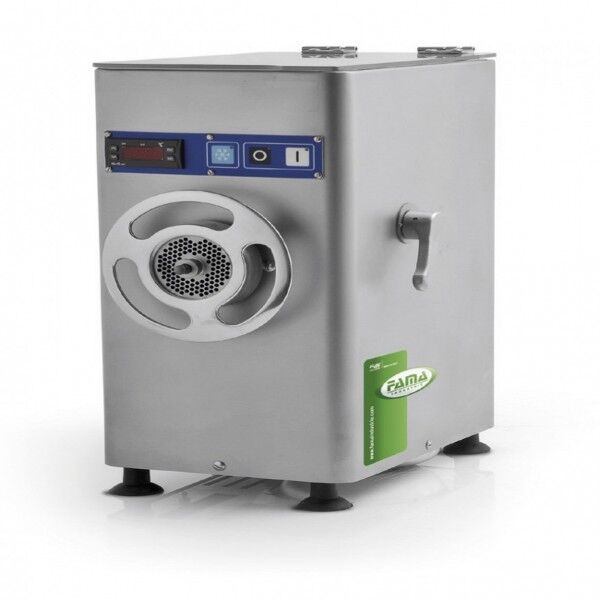

Fama TR22 Single Phase Refrigerated Meat Grinder FTR100M

Professional refrigerated meat grinder model TR22

Stainless Steel Grinding Unit, Single Phase Power Supply

Professional refrigerated meat grinder with a solid one-piece stainless steel construction, perfect for grinding and processing meat while it is kept fresh in butcher shops and supermarkets.

The internal helical gears are oil-bath hardened steel with asynchronous and ventilated motor equipped with thermal safety protection to prevent damage to the motor during long or intensive processing.

The TR 22 model is equipped with a partially removableenterprise model grinding system consisting of a stainless steel plate with 6-mm diameter holes already provided and a knife, also made of stainless steel, that is self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 8 mm and a minimum of 2 mm.

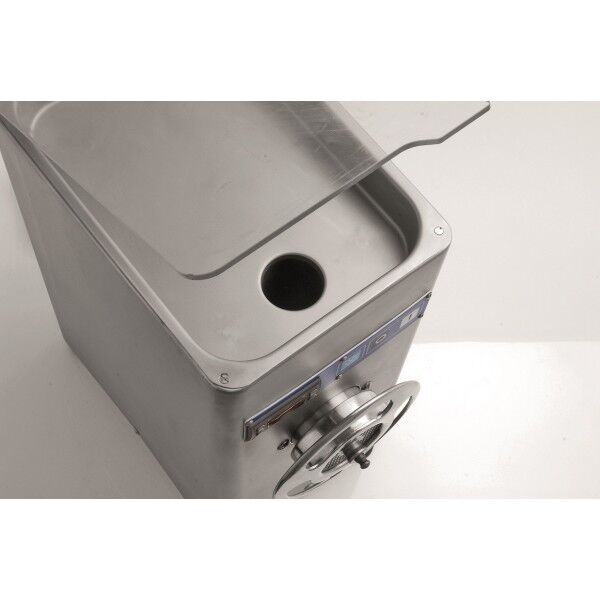

The meat grinder has an inlet port with a diameter Ø of 52 mm covered through a transparent plexiglass cover and an outlet port with a diameter Ø of 82 mm

The meat grinder is equipped with an ABS pestle suitable for food contact. The control panel power supply is 24 volts as per current regulations.

The powerful single-phase 230-volt, 50 Hz motor has a power rating of 0.9 kWatt.

Refrigeration is by R134a gas, which allows a temperature, adjustable by thermostat, between -2°C and 4°C

The TR22 meat grinder Fama industrie is produced entirely in Italy respecting all European CE certifications and regulations.

The hourly output of this meat grinder is stated to be 280-300 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-plates with holes of different diameters from 2mm to 8mm bore.

-kit bagging funnels with 15, 20 or 25mm outlet

-Spare stainless steel knife

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model TR/22
• -Univocal code FTR100M
• -Made in Italy
• -Brand Fama industrie
• -Stainless Steel Grinding Unit
• -Single-phase power supply 230 volts 50 Hz
• -Power 0.9 kW (1.2 hp)
• -Hourly output 280-300 kg/h
• -Stainless steel fairing structure
• -Stainless steel hopper
• -Stainless steel collection plate
• -Pestle made of ABS
• -24-Volt Controls
• -CE Standards
• -Meat insertion port diameter ø52mm
• -Exit port diameter ø82mm
• -Auger revolutions 120 rpm
• -Total dimensions 270x410x545h mm
• -Net weight 43 kg
• -Gross Weight 46 kg
• -Packaging dimensions 430x600x660h mm

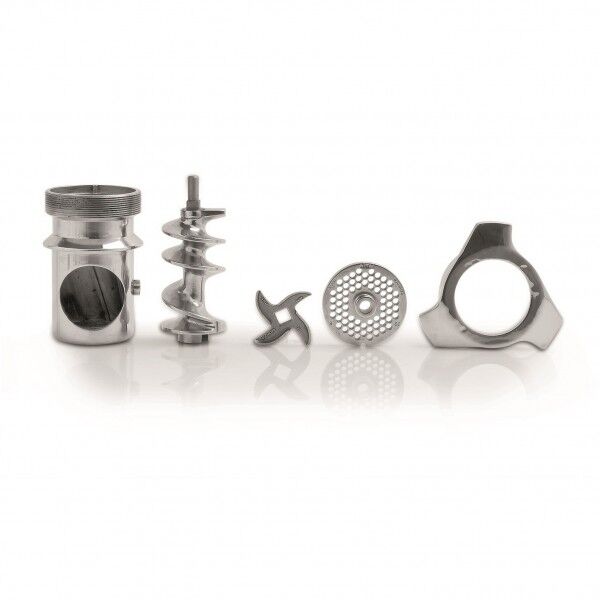

ENTERPRISE system consisting of a grinding chamber, auger, a perforated plate, a knife and a closing hand wheel. Different plates are available with holes of different diameters up to a maximum of 8 mm (per European regulations). As standard, the meat grinder comes with a plate with 6 mm diameter holes.

MADE IN ITALY

Machinery manufactured and produced in Italy by Fama industrie, a family-owned company with over 65 years of history and experience in designing and marketing professional catering equipment. It boasts Quality and reliability throughout Italy and the world where it sells and collaborates with professionals in all sectors of the catering industry. The production and design facility is located in Rimini where a team of professionals daily designs and manufactures precision machinery for bars, restaurants, canteens, professional kitchens, hotels and hotels.
