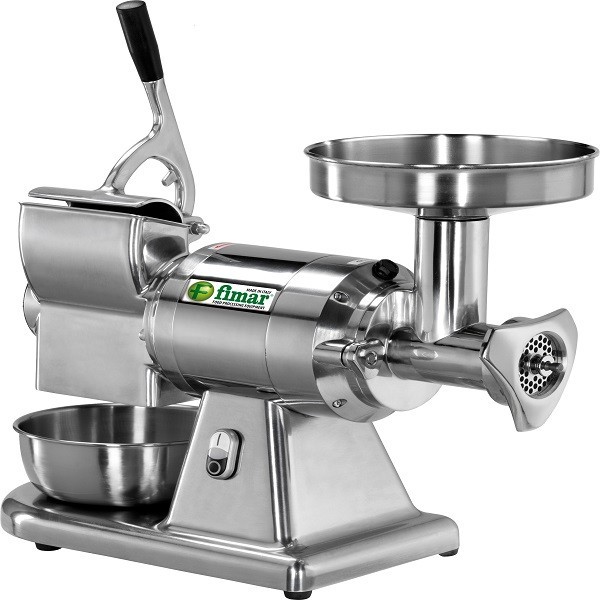

Professional Meat Mincer Grater Fimar 12AT Single Phase Unger Inox

Professional meat grinder grater model 12AT Unger

Stainless steel grinding unit, single-phase power supply

Matched professional grater meat grinder made of polished aluminum, this meat grinder is specially designed for processing and producing minced meat.

Model 12AT is equipped witha Unger model grinding system consisting of two stainless steel plates with 4.5- and 8-mm diameter holes and a roughing plate already included and two knives, also made of stainless steel, self-sharpening. Other plates with different hole diameters are also available for separate purchase with a maximum hole diameter of 20 mm and a minimum of 2 mm.

The grinding unit for this model is made of stainless steel and is completely removable, can thus be washed in a water bath or dishwasher or can be placed in the refrigerator, in accordance with HACCP hygiene regulations, without being previously cleaned of meat residues.

This professional meat processing equipment is manufactured with a high-quality aluminum frame and a stainless steel product inlet hopper.

The meat inlet mouth has a diameter Ø of 52 mm.

The polished aluminum inlet of the grater has dimensions of 140x75 mm.

The powerful 230-volt, 50 Hz, single-phase motor with 0.75 kWatt output is equipped with an oil-bath gearbox to ensure maximum efficiency.

Reversing gear is not standard in this model; it can be purchased on request.

There are also low-voltage controls, a protection grid and a microswitch lever press in the grater that provides additional protection during processing, the safety device will stop the rotary movement in compliance with current European regulations when the grater lever is in the raised position.

The hourly output of this meat grinder is claimed to be between 100 and 160 kg/h, while the output of the grater is 40 kg/h

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-Plates with holes of different diameters from 2 mm to 20 mm bore.

-Bagging funnels with 15 or 8 mm diameter outlet

-Stainless steel replacement knife

-Spare parts for repairs

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model 12AT
• -Made in Italy
• -Brand Fimar S.p.a.
• -Stainless steel grinding unit.
• -Single-phase 230 volt 50 Hz power supply.
• -Power 0.75 kW (1 HP)
• -Hourly meat production 100 - 160 kg/h
• -Hourly cheese production: 40 kg/h
• -Polished aluminum structure
• -Stainless steel grater housing
• -Stainless steel grater roller.
• -Aluminum grater mouth.
• -Meat inlet opening Ø 52 mm
• -Cheese inlet mouth 140x75 mm
• -Stainless steel plate Ø 4.5 and 8 mm included.
• -Roughing plate supplied
• -Self-sharpening stainless steel knives.
• -Pressor lever safety microswitch
• -Bottom protection grid
• -Total dimensions 605x305x510-600h mm
• -Net weight 26 kg
• -Gross Weight 30 kg
• -Packaging dimensions 750x300x480h mm

UNGER system consisting of grinding chamber, auger, three perforated plates, two knives and closing hand wheel. Different plates with holes of different diameters are available, unger plates with diameter larger than Ø 8 mm can be mounted only as inner plates (per European regulation). As standard, the mincer comes with a plate with 4.5- and 8-mm-diameter holes.

MADE IN ITALY

Equipment manufactured and built in Italy by the company Fimar S.p.a. which has more than 30 years of experience in the design and production of specific machinery for professional catering designed specifically for restaurants, butcher shops, bars, canteens, supermarkets and professional catering activities. A Team of professionals selects the best suppliers and raw materials every day to ensure the highest quality finished product guaranteeing reliability and safety, the machines produced by the Fimar brand are shipped and used daily all over the world by catering professionals.
