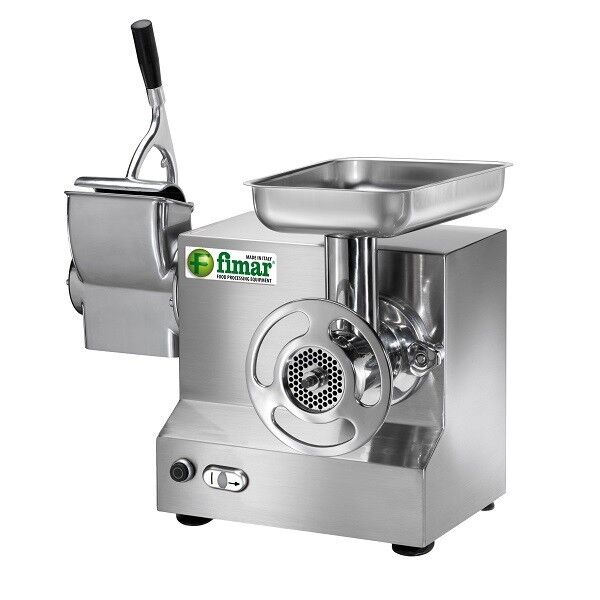

Professional Meat Mincer Grater Fimar 22AT Three Phase

Professional meat grinder grater model 22AT

Food-grade cast iron grinding unit, three-phase power supply

Matching professional shrouded grater meat grinder made of stainless steel, this meat grinder is specially designed for the processing and production of minced meat.

Model 22AT has an enterprise model grinding system consisting of a stainless steel plate with 6 mm diameter holes already provided and a knife, also made of stainless steel, that is self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 8 mm and a minimum of 2 mm.

The grinding unit for this model is made of food -gradecast iron specially treated for food contact.

The cast iron grinding unit is completely removable but is not dishwasher or water bath safe. The grinding unit can be placed in the refrigerator, in accordance with HACCP hygiene regulations, without first being cleaned of meat residues.

This professional meat-processing equipment is manufactured with a high-quality stainless steel outer casing and a hopper for product input, also made of stainless steel.

The meat inlet mouth has a diameter Ø of 52 mm.

The polished aluminum inlet of the grater has dimensions of 140x75 mm.

The powerful 380-400 Volt, 50 Hz, three-phase motor with 1.1 kWatt power is also equipped with reversing, gearbox with oil-bath gears to ensure maximum efficiency.

There are also low-voltage controls, a protection grid and a microswitch lever press in the grater that provides additional protection during processing, the safety device will stop the rotary movement in compliance with current European regulations when the grater lever is in the raised position.

The hourly output of this meat grinder is claimed to be between 150 and 250 kg/h, while the output of the grater is 40 kg/h

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-Plates with different hole diameters from 2 mm to 8 mm holes

-Sacking funnels with 15 or 20 mm diameter outlet

-Stainless steel replacement knife

-Spare parts for repairs

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model 22AT
• -Made in Italy
• -Brand Fimar S.p.a.
• -Food grade cast iron grinding unit.
• -Three-phase 380-400 volt 50 Hz power supply.
• -Power 1.1 kW (1.5 HP).
• -Hourly meat output 150 - 250 kg/h
• -Hourly cheese production: 40 kg/h
• -Stainless Steel Fairing Structure.
• -Stainless steel grater housing
• -Stainless Steel Grater Roller.
• -Aluminum grater mouth.
• -Meat inlet opening Ø 52 mm
• -Cheese inlet mouth 140x75 mm
• -Stainless steel plate Ø 6 mm included.
• -Stainless steel self-sharpening knife.
• -Pressor lever safety microswitch
• -Bottom protection grid
• -Total dimensions 560x430x480-650h mm
• -Net weight 38 kg
• -Gross Weight 48 kg
• -Packaging dimensions 770x520x580h mm

ENTERPRISE system consisting of a grinding chamber, auger, a perforated plate, a knife and a closing hand wheel. Different plates are available with holes of different diameters up to a maximum of 8 mm (per European regulations). As standard, the meat grinder comes with a plate with 6 mm diameter holes.

MADE IN ITALY

Equipment manufactured and built in Italy by the company Fimar S.p.a., which has more than 30 years of experience in the design and production of specific machinery for professional catering designed specifically for restaurants, butcher shops, bars, canteens, supermarkets and professional catering activities. A Team of professionals selects the best suppliers and raw materials every day to ensure the highest quality finished product guaranteeing reliability and safety, the machines produced by the Fimar brand are shipped and used daily all over the world by catering professionals.
