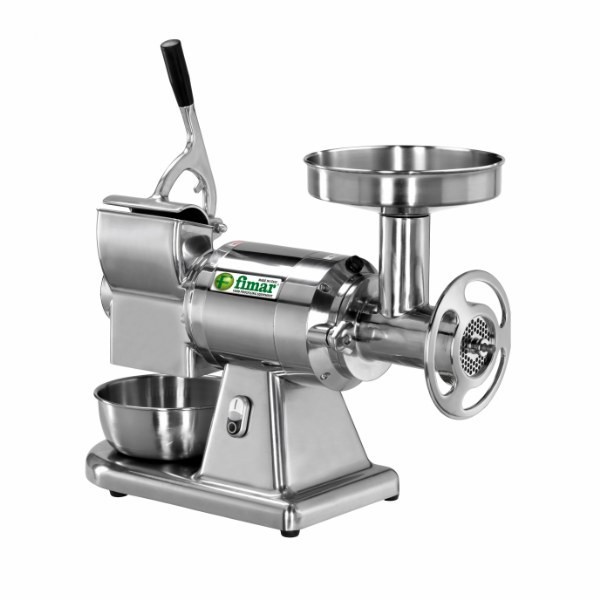

Professional Meat Mincer Grater Fimar 12AT Three Phase

Professional meat grinder grater model 12AT

Food-grade cast iron grinding unit, three-phase power supply

Matched professional grater meat grinder made of polished aluminum, this meat grinder is specially designed for processing and producing minced meat.

Model 12AT has an enterprise model grinding system consisting of a stainless steel plate with 6 mm diameter holes already provided and a knife, also made of stainless steel, that is self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 8 mm and a minimum of 2 mm.

The grinding unit for this model is made of food-gradecast iron specially treated for food contact and is completely removable, the elements cannot be washed in a water bath or dishwasher or can be placed in the refrigerator, in accordance with HACCP hygienic regulations, without being previously cleaned of meat residues.

This professional meat processing equipment is manufactured with a high-quality aluminum frame and a stainless steel product inlet hopper.

The meat inlet mouth has a diameter Ø of 52 mm.

The polished aluminum inlet of the grater has dimensions of 140x75 mm.

The powerful 380-400 Volt, 50 Hz, three-phase motor with 0.75 kWatt power is equipped with an oil-bath gearbox to ensure maximum efficiency.

Reversing gear is not standard in this model; it can be purchased on request.

There are also low-voltage controls, a protection grid and a microswitch lever press in the grater that provides additional protection during processing, the safety device will stop the rotary movement in compliance with current European regulations when the grater lever is in the raised position.

The hourly output of this meat grinder is claimed to be between 100 and 160 kg/h, while the output of the grater is 40 kg/h

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-Plates with different hole diameters from 2 mm to 8 mm holes

-Sacking funnels with 15 or 8 mm diameter outlet

-Stainless steel replacement knife

-Spare parts for repairs

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model 12AT
• -Made in Italy
• -Brand Fimar S.p.a.
• -Food grade cast iron grinding unit.
• -Three-phase 380-400 volt 50 Hz power supply.
• -Power 0.75 kW (1 HP)
• -Hourly meat production 100 - 160 kg/h
• -Hourly cheese production: 40 kg/h
• -Polished aluminum structure
• -Stainless steel grater housing
• -Stainless steel grater roller.
• -Aluminum grater mouth.
• -Meat inlet opening Ø 52 mm
• -Cheese inlet mouth 140x75 mm
• -Stainless steel plate Ø 6 mm included.
• -Stainless steel self-sharpening knife.
• -Pressor lever safety microswitch
• -Bottom protection grid
• -Total dimensions 605x305x510-600h mm
• -Net weight 26 kg
• -Gross Weight 30 kg
• -Packaging dimensions 750x300x480h mm

ENTERPRISE system consisting of a grinding chamber, auger, a perforated plate, a knife and a closing handwheel. Different plates are available with holes of different diameters up to a maximum of 8 mm (per European regulations). As standard, the meat grinder comes with a plate with 6 mm diameter holes.

MADE IN ITALY

Equipment manufactured and built in Italy by the company Fimar S.p.a., which has more than 30 years of experience in the design and production of specific machinery for professional catering designed specifically for restaurants, butcher shops, bars, canteens, supermarkets and professional catering activities. A Team of professionals selects the best suppliers and raw materials every day to ensure the highest quality finished product guaranteeing reliability and safety, the machines produced by the Fimar brand are shipped and used daily all over the world by catering professionals.
