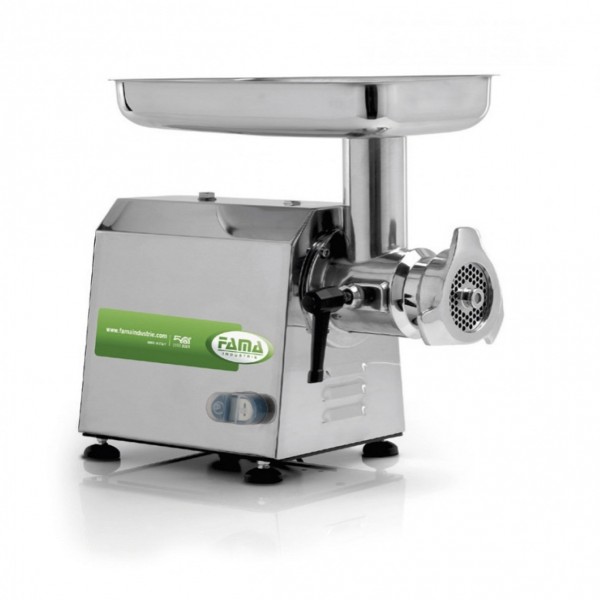

Professional Meat Grinder Fama TI22 Trifasea FTI116

Professional meat grinder model TI22

Food grade cast iron grinding unit, Three phase power supply

A professional stainless steel shrouded meat grinder, this machinery is ideal for efficient meat grinding and processing.

The internal helical gears are made of oil-bath hardened steel with a ventilated asynchronous motor equipped with thermal safety protection to prevent damage to the motor during long or intensive processing.

The TI 22 model is equipped with a partially removable enterprise model food-grade cast iron grinding system consisting of a stainless steel plate with 6-mm diameter holes already provided and a knife, also made of stainless steel, that is self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 8 mm and a minimum of 2 mm.

The meat grinder has an inlet port with a diameter Ø of 52 mm and an outlet port with a diameter Ø of 82 mm

The meat grinder is equipped with an ABS pestle suitable for food contact. The control panel power supply is 24 volts as per current regulations.

The powerful asynchronous and ventilated three-phase motor of 230-400 volts, 50 Hz, has a power of 1.1 kWatt. In this model, thereverse gear is not standard, but can be purchased on request.

The TI12 Fama industrie meat grinder is manufactured entirely in Italy respecting all European CE certifications and regulations.

The hourly output of this meat grinder is stated to be 300 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-plates with holes of different diameters from 2mm to 8 mm bore.

-kit bagging funnels with 15, 20 or 25mm outlet

-Spare stainless steel knife

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model TI/22
• -Unique code FTI136
• -Made in Italy
• -Brand Fama industrie
• -Grinding unit made of food-grade cast iron
• -Three-phase power supply 230-400 volts 50 Hz
• -Power 1.1 kW (1.5 hp)
• -Hourly output 300 kg/h
• -Stainless steel fairing structure
• -Stainless steel hopper
• -Stainless steel collection plate
• -Basket made of ABS
• -24-Volt Controls
• -CE Standards
• -Meat insertion port diameter ø52 mm
• -Exit port diameter ø70 mm
• -Auger revolutions 140 rpm
• -Total dimensions 215x440x440h mm
• -Net weight 25 kg
• -Gross weight 27.5 kg
• -Packaging dimensions 300x480x510h mm

ENTERPRISE system consisting of a grinding chamber, auger, a perforated plate, a knife and a closing hand wheel. Different plates are available with holes of different diameters up to a maximum of 8 mm (per European regulations). As standard, the meat grinder comes with a plate with 6 mm diameter holes.

MADE IN ITALY

Machinery manufactured and produced in Italy by Fama industrie, a family-owned company with over 65 years of history and experience in designing and marketing professional catering equipment. It boasts Quality and reliability throughout Italy and the world where it sells and collaborates with professionals in all sectors of the catering industry. The production and design facility is located in Rimini where a team of professionals daily designs and manufactures precision machinery for bars, restaurants, canteens, professional kitchens, hotels and hotels.
