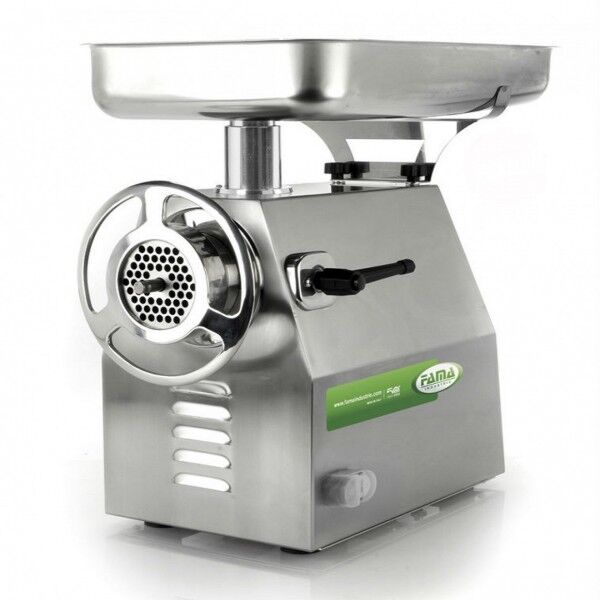

Professional Meat Grinder Fama TI32RS Three Phase Unger FTI138RSUT

Professional meat grinder model TI32RS Unger Total

Stainless Steel Grinding Unit, Three Phase Power Supply

Professional meat grinder made of polished stainless steel, the unger grinding system allows for fine processing of meat making the machine ideal for sausage production.

The internal helical gears are oil-bath hardened steel with a ventilated asynchronous motor equipped with thermal safety protection to prevent damage to the motor during long or intensive processing.

The TI 32 RS model is equipped with a partially removable Unger Total model grinding system consisting of two stainless steel plates with 6- and 10-mm diameter holes and a roughing plate already supplied and two knives, also made of stainless steel, self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 20 mm and a minimum of 2 mm.

The meat grinder has an inlet port with a diameter Ø of 52 mm and an outlet port with a diameter Ø of 98 mm

The meat grinder is equipped with an ABS pestle suitable for food contact. The control panel power supply is 24 volts as per current regulations.

The powerful three-phase motor of 230-400 volts, 50 Hz, with an output of 1.6 kWatts. In this model,reverse gear is not standard, but can be purchased on request.

The TI32 R Fama industrie meat grinder is manufactured entirely in Italy respecting all European CE certifications and regulations.

The hourly output of this meat grinder is stated to be 500 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-plates with holes of different diameters from 2mm to 20 mm bore.

-kit bagging funnels with 15, 20 or 25 mm outlet

-Spare stainless steel knife

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Specifications:

• -Model TI/32RS
• -One-time code FTI138RUT
• -Made in Italy
• -Brand Fama industries
• -Stainless Steel Grinding Unit
• -Three-phase power supply 230-400 volts 50 Hz
• -Power 1.6 kW (2.2 hp)
• -Ventilated motor
• -Hourly output 500 kg/h
• -Polished Stainless Steel Structure.
• -Stainless steel hopper
• -Stainless steel collection plate
• -Stainless steel plates with 6 and 10 mm holes included
• -Stainless steel roughing plate included
• -Stainless steel knives included
• -ABS pestle
• -24-Volt Controls
• -CCE standards
• -Meat insertion port diameter ø52 mm
• -Exit port diameter ø98 mm
• -Auger revolutions 140 rpm
• -Total dimensions 260x510x525h mm
• -Net weight 40 kg
• -Gross weight 43 kg
• -Packaging dimensions 430x620x650h mm

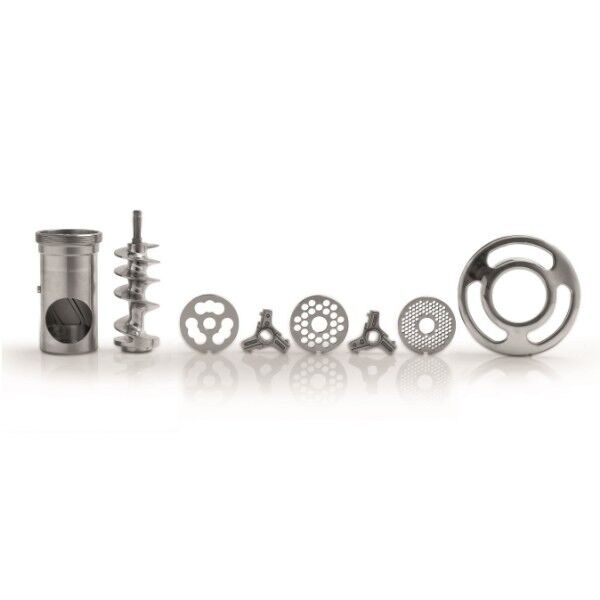

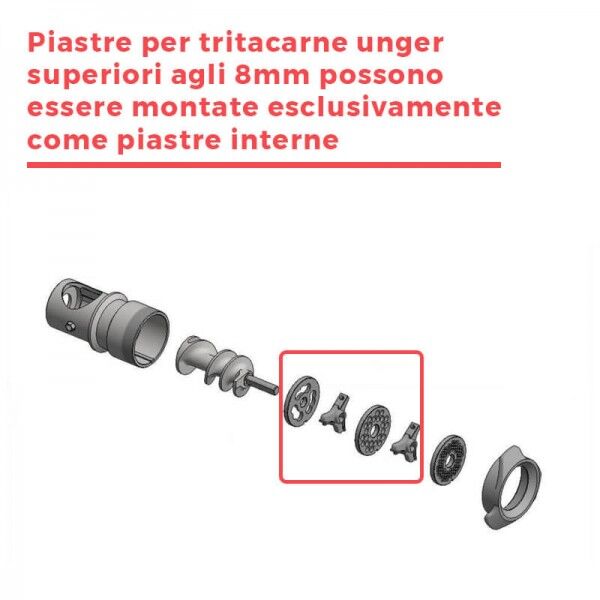

Total UNGER system consisting of grinding chamber, auger, three perforated plates, two knives and closing hand wheel. Different plates with holes of different diameters are available; unger plates with diameters larger than Ø 8 mm can only be mounted as inner plates (per European regulations). As standard, the mincer comes with a plate with 0 , 6 and 10 mm diameter holes.

MADE IN ITALY

Machinery manufactured and produced in Italy by Fama industrie, a family-owned company with over 65 years of history and experience in designing and marketing professional catering equipment. It boasts Quality and reliability throughout Italy and the world where it sells and collaborates with professionals in all sectors of the catering industry. The production and design facility is located in Rimini where a team of professionals daily designs and manufactures precision machinery for bars, restaurants, canteens, professional kitchens, hotels and hotels.
