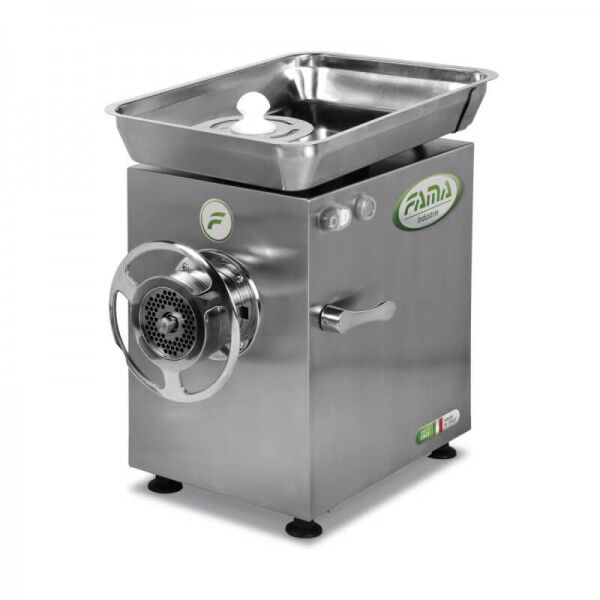

Professional Meat Grinder Fama TI32R Three Phase Unger FTI139RPUT

Professional meat grinder model TI 32R Pro Unger

Stainless Steel Grinding Unit, Three Phase Power Supply

A very powerful professional meat grinder fairing made of stainless steel, this machinery is ideal for efficient meat grinding and processing.

The machinery has a ventilated asynchronous motor with an additional fan is equipped with safety thermal protection and a hermetic oil-bath gearbox to prevent damage to the motor during long or intensive processing.

The TI 32 R Pro model is equipped witha partially removable Unger model grinding system consisting of two stainless steel plates with 10- and 6-mm diameter holes and a roughing plate already included and two knives, also made of stainless steel, self-sharpening. Other plates with different holes are also available to be purchased separately with a maximum hole diameter of 20 mm and a minimum of 2 mm.

The meat grinder has a Ø 76 mm diameter inlet port, which comes with a protective grid to allow for greater safety during processing, and a Ø 98 mm diameter outlet port.

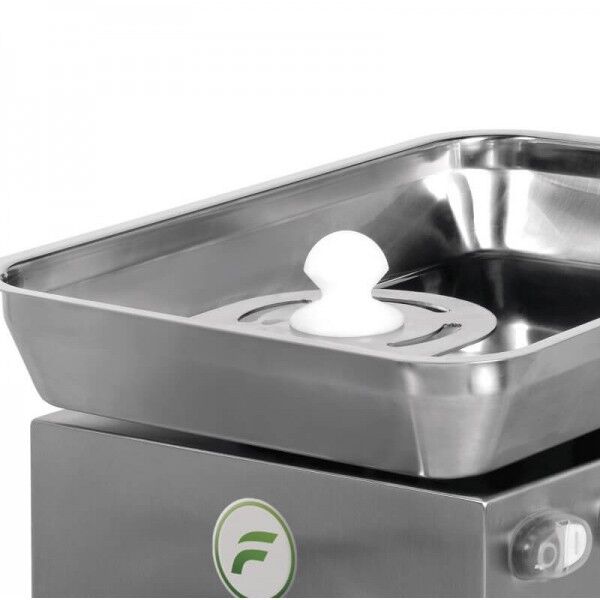

The removable hopper is equipped with a coded safety microswitch.

The meat grinder is equipped with an ABS pestle suitable for food contact. The control panel power supply is 24 volts as per current regulations.

The machinery has a protection rating of IP65, meaning it is completely sealed against dust and fumes and well protected against liquids.

The start and stop button is protected according to an IP65 degree of protection.

The meat grinder has an electronic control unit that monitors the congruence of magnetic safety sensors.

The powerful asynchronous and ventilated three-phase motor of 230-400 volts, 50 Hz, has 2.2 kWatt power with reverse gear as standard.

The TI 32 R PRO Fama industries meat grinder is manufactured entirely in Italy while complying with all European CE certifications and regulations.

The hourly output of this meat grinder is stated to be 600 kg/h.

ACCESSORIES THAT CAN BE PURCHASED SEPARATELY:

-plates with holes of different diameters from 2mm to 8mm bore.

-kit bagging funnels with 15, 20 or 25mm outlet

-Spare stainless steel knife

All accessories and spare parts can be found in the "Accessories" section of this product sheet.

Technical features:

• -Model TI/32R PRO
• -One-time code FTI139RPUT
• -Made in Italy
• -Brand Fama industrie
• -Stainless Steel Grinding Unit
• -Three-phase power supply 230-400 volts 50 Hz
• -Ventilated motor with supplementary fan.
• -Power 2.2 kW (3 hp)
• -Hourly output 600 kg/h
• -Stainless steel fairing structure
• -Stainless steel hopper
• -Stainless steel collection plate
• -Basket made of ABS
• -24-volt controls.
• -Central control unit with safety sensor control.
• -Machinery under an IP65 safety rating.
• -EC Standards.
• -Flesh insertion port of diameter ø52 or ø76 mm
• -Exit port of diameter ø98 mm
• -Auger revolutions 140 rpm
• -Total dimensions 295x545x550h mm
• -Net weight 50 kg
• -Gross weight 54 kg
• -Packaging dimensions 420x545x550h mm

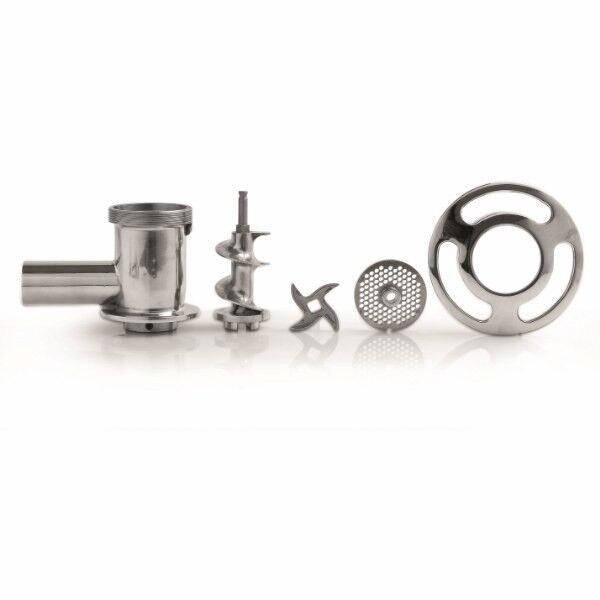

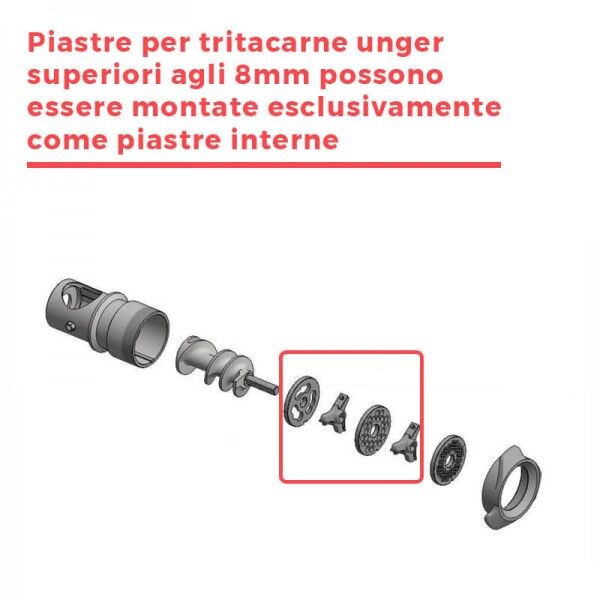

UNGER system consisting of grinding chamber, auger, three perforated plates, two knives and closing hand wheel. Different plates with holes of different diameters are available, unger plates with diameter larger than Ø 8 mm can be mounted only as inner plates (per European regulation). As standard, the meat grinder comes with a plate with 10 and 6 mm diameter holes.

MADE IN ITALY

Machinery manufactured and produced in Italy by Fama industrie, a family-owned company with over 65 years of history and experience in designing and marketing professional catering equipment. It boasts Quality and reliability throughout Italy and the world where it sells and collaborates with professionals in all sectors of the catering industry. The production and design facility is located in Rimini where a team of professionals daily designs and manufactures precision machinery for bars, restaurants, canteens, professional kitchens, hotels and hotels.
